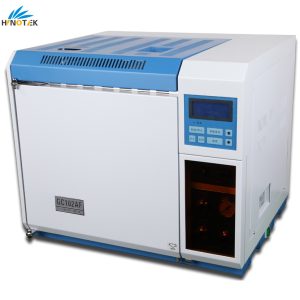

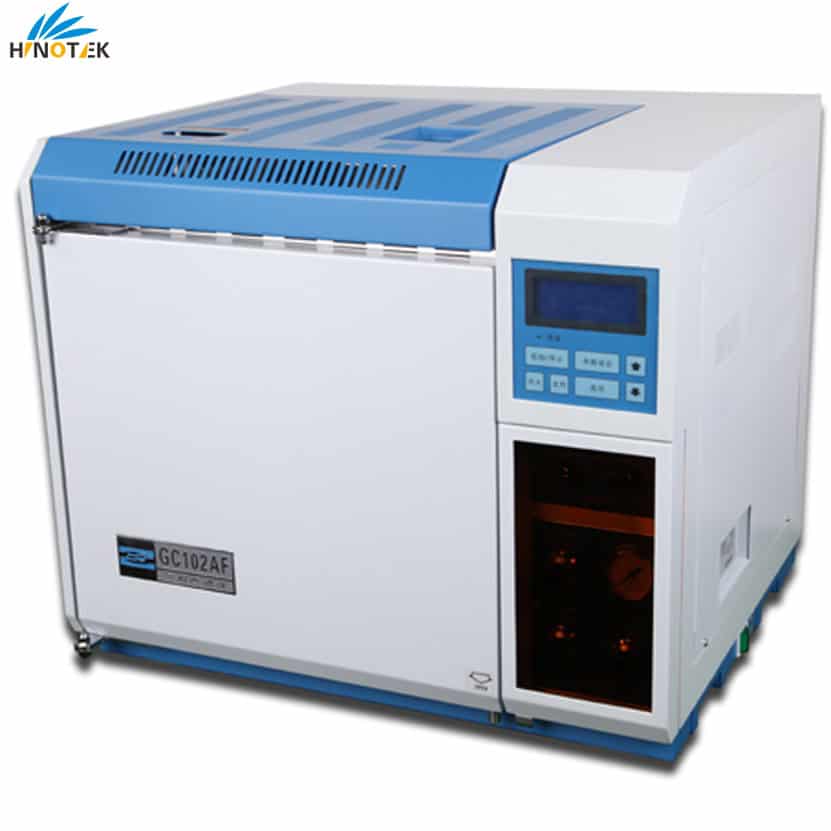

GC102AF

Gas Chromatograph

Detailed introduction

The GC102AF Gas Chromatograph is a new generation of universal gas chromatograph equipped with a hydrogen flame ionization detector (FID) for complete computerized counter-control and remote instrument detection and fault diagnosis.

Main Feature:

● complete PC control, intuitive interface, easy to operate.

● high temperature control accuracy (better than ± 0.1 ℃) heating speed, overshoot temperature is small.

● With self-diagnosis, power protection, oven over-temperature protection, automatic ignition and other functions.

● can accurately display the temperature control set value, the actual value, FID amplifier sensitivity.

● With single gas system, accurate scale air control valve parts, to achieve excellent reproducibility and stability.

● packed column: column injection, instantaneous vaporization injection, gas injection.

● Open computer system can be used with NJ2000 chromatography station to achieve data processing.

● Large capacity oven (300mm × 280mm × 270mm) easy to install packed column.

● Built-in heating wire structure.

Other:

● Power supply voltage: 220V ± 22V 50Hz ± 1Hz

● Total power of the instrument: ≤ 1500W

Optional:

● NJ2000 Chromatography Workstation

Column oven:

● Inner volume: 22L

● Temperature range: 15 ℃ -399 ℃ at room temperature

● Temperature control accuracy: ± 0.1 ℃

Sampler:

Temperature range: 15 ℃ – 399 ℃ at room temperature

● Temperature control mode: independent temperature control

● Carrier gas flow control mode: constant pressure

● Number of simultaneous installations: 1

● Injection unit type: packed column

Stigma pressure range: 0 – 400kpa

● Stem pressure control accuracy: 0.1kpa

● Flow setting range: H20 – 200ml / min N20 – 200ml / min

Detector:

Temperature range: 15 ℃ – 399 ℃ at room temperature

● Number of simultaneous installations: up to 1

● Ignition function: automatic

Hydrogen Flame Ionization Detector (FID):

● Detection limit: ≤ 1 × 10-10 g / s (n-hexadecane)

● Baseline noise: ≤ 2 × 10-13 A / h

Baseline drift: ≤ 2 × 10-12 A / h

● Dynamic range: 106

● RSD: ≤ 3%
