Description
Function and Feature
• AC slow explosion-proof motor driver, separation design, Separate driver and frequency converter.
• Frequency converter control, with the start/stop, positive and negative, adjust speed ,communication etc functions.
• Stepless speed ,the speed resolution is 0.1HZ.
• Large torque design , stable operation
• Can be installed a variety of pump heads
• High protection grade of IP65, suitable to complex working environment.
• 380V can work without frequency converter ,speed is 570rpm.
Technical Parameters
- Flow range 800～12000ml/min
• Speed range: 5-50Hz (60～570rpm)
• Speed resolution: 0.1HZ（1.14rpm）
• Keys operation.
• LED display.
• Power supply : Three phase 380 v,50Hz/60Hz (AC220V optional)
• Motor parameter: Three phase 380 v/0.37KW 2800rpm
• Power consumption: 0.37KW
• Working environment: Temperature 0℃~40℃，relative humidity<80%
• Casing Dimensions: （LxWxH）560*250*271.5
• Anti-explosion Grade: DIIBT4 (motor)
• IP Grade: IP65
• Weight: 36Kg

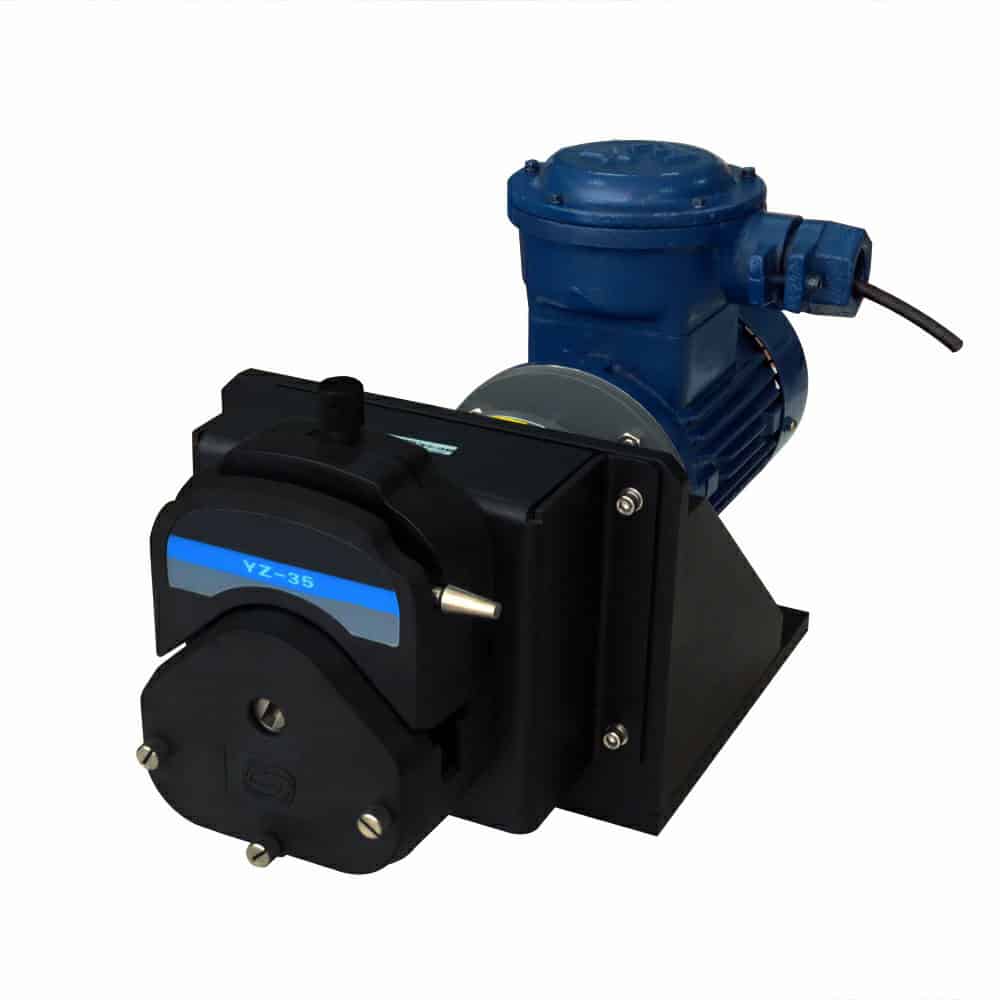

FG601S-A3 Peristaltic pump applicable pump head, tubing and flow rate：
| Drive Type | Pump head | Channel | Tubing（mm） | One channel flow rate ( mL/min) |
| FG601S-A3 | 2×KZ25 | 2 | 15#，24#，35#，36# | 120-6000mL/min |
| YZ35 | 1 | 73#，82# | 120-12000mL/min | |
| 2×YZ35 | 2 | 73#，82#(above 100rpm of silicone tube) |
