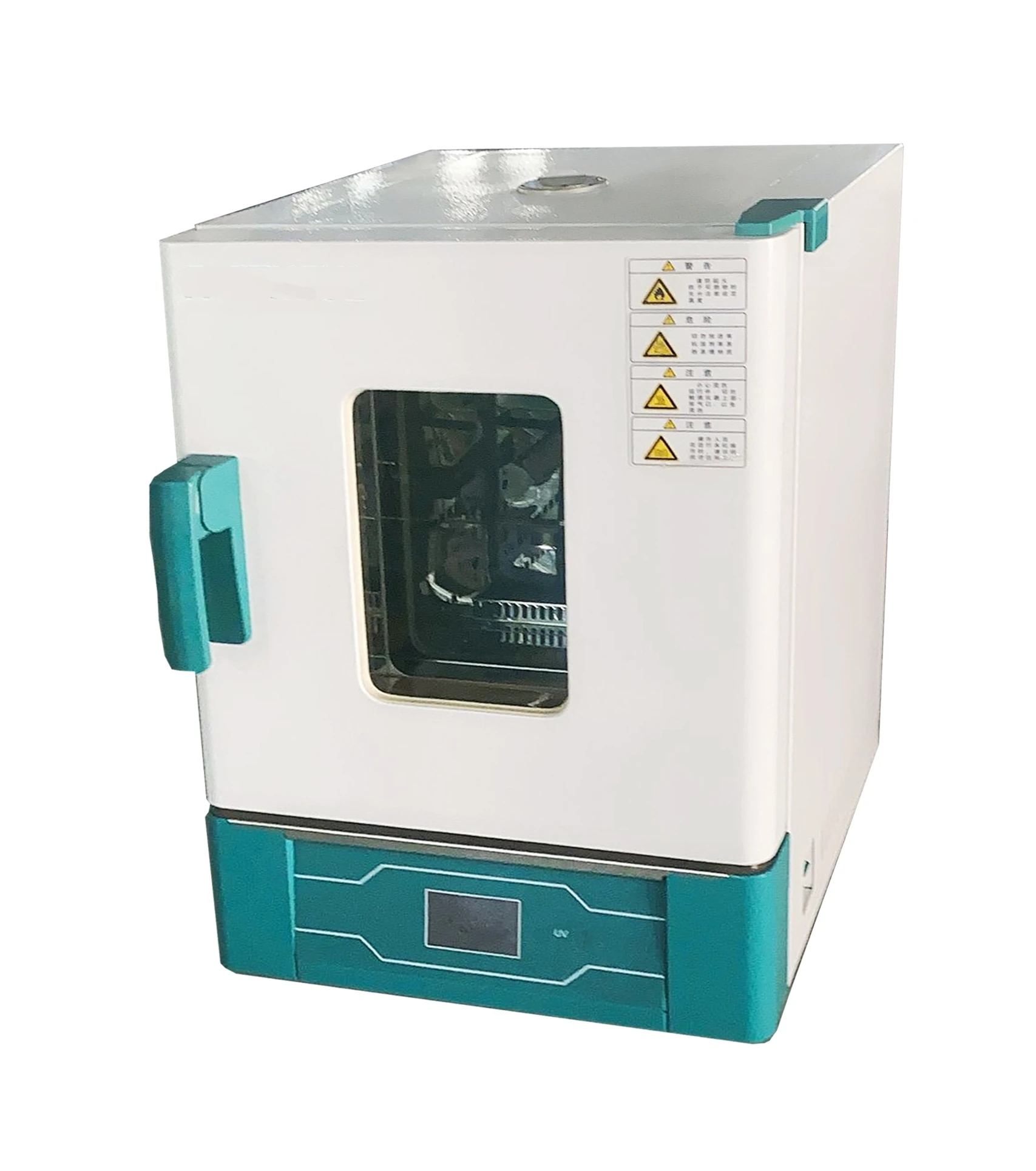

FDS-30BE Series Dental Drying and Sterilizing Oven
Used for industrial and mining enterprises, scientific research institute, laboratory drying in hospital health and other units, drying of dental instruments, sterilization.
Characteristics
Horizontal air circularly by double air ducts, high efficiency and high uniformity.
3.5 inch touch screen controller, two temperature section PID intelligent. Preset 4 operating temperatures, the temperature can be edited, select the mode, click run, run automatically, stop automatically, operation is convenient.
Over temperature sound-light alarm, Sensor deviation correction, temperature overshoot self-tuning, power-off parameter memory.
Patent No.: ZL201830094606.5
Technical Specifications
| Model | FDS-30BE | FDS-65BE | |
|---|---|---|---|
| Cycle Mode | Forced convection | ||
| Function | Temp. Range | RT+10-300 °C | |
| Temp. Resolution Ratio | 0.1 °C | ||
| Temp. Motion | ± 1 °C | ||
| Temp. Uniformity | ± 2.5% | ||
| Structure | Inner Chamber | Mirror Stainless Steel | |
| Outer Shell | Cold rolling steel electrostatic spraying exterior | ||
| Insulation Layer | High quality rock wool board | ||
| Heater | Stainless steel heater | ||
| Power Rating | 0.8kW | 1.6kW | |
| Exhaust Hole | φ 35mm top (with function of test hole) | ||
| Controller | Temp. Control Mode | Two temperature section PID intelligent | |
| Temp. Setting Mode | 3.5 inch touch screen | ||
| Temp. Display Mode | Touch screen preset 4 mode settings, select a good mode to set the temperature time | ||
| Timer | 0-9999min (with timing wait function) | ||
| Operation Function | Fixed temperature operation, fixed timing operation, auto stop | ||
| Additional Function | Over temperature sound-light alarm, Sensor deviation correction, temperature overshoot, self-tuning, power-off parameter memory | ||
| Sensor | PT100 | ||
| Safety Device | Over temperature alarm and cut off heating | ||
| Specification | Inner Chamber Size(W*L*H)(mm) | 310 × 310 × 310 | 400 × 360 × 450 |
| Exterior Size(W*L*H)(mm) | 450 × 500 × 690 | 540 × 550 × 830 | |
| Packing Size(W*L*H)(mm) | 540 × 575 × 855 | 635 × 625 × 995 | |
| Volume | 30L | 65L | |
| Shelf number | 6 | 9 | |
| Load Per Rack | 15kg | ||
| Shelf Space | 35mm | ||
| Power Rating (50/60HZ) | AC220V/3.6A | AC220V/7.2A | |
| NW/GW(kg) | 33/37 | 44/49 | |
| Accessory | Shelf | 2 | |
| Shelf Frame | 4 | ||
| Optional Accessories | Spare shelf, RS485 Communication Interface | ||
