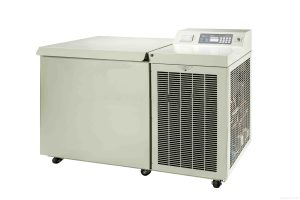

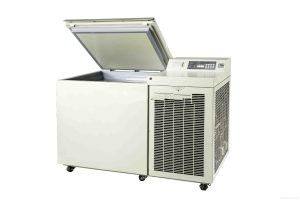

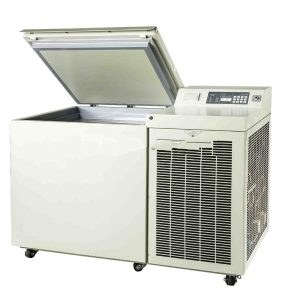

DW-LW128 Cryro freezer
Control System:
ø Microprocessor-based temperature controller, -110℃~-152℃ / -90℃~-135℃/-40℃~-105℃ adjustable, Digital temperature display.
ø Audible and visual alarm: High or low-temperature alarm, Power failure alarm, Low battery alarm, Door open alarm, Filter blocking alarm, system failure alarm.
ø Keyboard lock and password protected configuration page, Delayed start and safe stop interval between restart and being terminated
ø With temperature recorder, 72 hours back up battery for recorder and controller work.
Structure Design:
ø Stainless steel interior, outer is painted steel panel, 4units Casters for easy handing
ø Rotatable assistant door handle, Top door with key lock.
ø Two-times foaming technology, 155mm extra thickness foaming insulation.
ø Optional: Chart recorder, CO2 back up system, storage racks/boxes, Remote alarm system.
Refrigeration System:
ø Imported famous brand compressor, Quick freezing functions, with lower noise.
ø Unique refrigeration circulation and unipolar compressor oil-lubricated technology
ø Use China Patent technology of mixture refrigerant. For especially Single stage refrigeration.
ø VIP board install, for good heat preservation
| Model | Capacity (L) | Input Power | Temperature | External Size (WxDxH) mm |
Inside Size (WxDxH) mm |
Weight (N.t) |
| DW-UW128 | 128 | 4600W | -110~ -152ºC | 1510*985*1120 | 510*460*540 | 305 Kg |
| DW-UW258 | 258 | 9200W | -110~ -152ºC | 2085*890*1009 | 1140*410*552 | 420 Kg |
| DW-LW128 | 128 | 4600W | -90~ -135ºC | 1510*985*1120 | 510*460*540 | 305 Kg |
| DW-LW258 | 258 | 9200W | -90~ -135ºC | 2250*940*1120 | 1140*410*552 | 420 Kg |
| DW-MW138 | 138 | 1200W | -10~ -105ºC | 1320*890*1020 | 490*470*582 | 215 Kg |
| DW-MW328 | 328 | 1800W | -10~ -105ºC | 2085*890*1009 | 1200*470*582 | 300 Kg |
