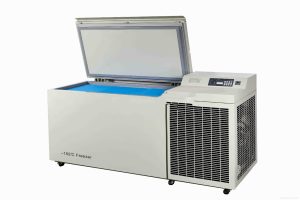

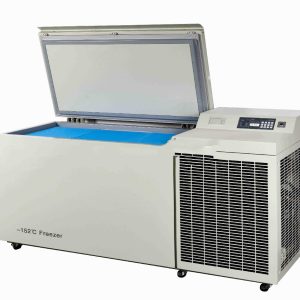

Cryro freezer


Control System:

ø Microprocessor-based temperature controller, -110℃~-152℃ / -90℃~-135℃/-40℃~-105℃ adjustable, Digital temperature display.
ø Audible and visual alarm: High or low-temperature alarm, Power failure alarm,  Low battery alarm, Door open alarm, Filter blocking alarm, system failure alarm.
ø Keyboard lock and password protected configuration page, Delayed start and safe stop interval between restart and being terminated
ø With temperature recorder, 72 hours back up battery for recorder and controller work.

Structure Design:

ø Stainless steel interior, outer is painted steel panel, 4units Casters for easy handing
ø Rotatable assistant door handle, Top door with key lock.
ø Two-times foaming technology, 155mm extra thickness foaming insulation.
ø Optional: Chart recorder, CO2 back up system, storage racks/boxes, Remote alarm system.

Refrigeration System:

ø Imported famous brand compressor, Quick freezing functions, with lower noise.
ø Unique refrigeration circulation and unipolar compressor oil-lubricated technology
ø Use China Patent technology of mixture refrigerant. For especially Single stage refrigeration.
ø VIP board install, for good heat preservation

Model Capacity (L) Input Power Temperature External Size
(WxDxH) mm
Inside Size
(WxDxH) mm
DW-UW128 128 4600W -110~ -152ºC 1510*985*1120 510*460*540 305 Kg
DW-UW258 258 9200W -110~ -152ºC 2085*890*1009 1140*410*552 420 Kg
DW-LW128 128 4600W -90~ -135ºC 1510*985*1120 510*460*540 305 Kg
DW-LW258 258 9200W -90~ -135ºC 2250*940*1120 1140*410*552 420 Kg
DW-MW138 138 1200W -10~ -105ºC 1320*890*1020 490*470*582 215 Kg
DW-MW328 328 1800W -10~ -105ºC 2085*890*1009 1200*470*582 300 Kg



Download Brochure

SKU: dw-lw258 Category:
