DSR-10

Digital Shaking Rotator

Features:
1. With different types of fixing clips, it can carry out the mixing and shaking for vessels of different shape and size.
2. Two operation methods for choice: circling and reciprocating (Inverse direction also can be customized).
3. Compact structure. With BLDCM (Brushless DC Motor), the equipment can run smoothly with little noise for long period.
4. LCD with backlight can display the current speed, time and operation mode, convenient for reading and setting.
5. Precise digital time and speed setting can easily carry out the continuous operation mode.
6. Safe operating protection function adopted.
7. PC connection through RS232 interface. Particular software PClab can easily realize equipment controlling and recording on PC.
8. Maximum load reaches 7.5KG.
9. Accessories are not included, please order separately.

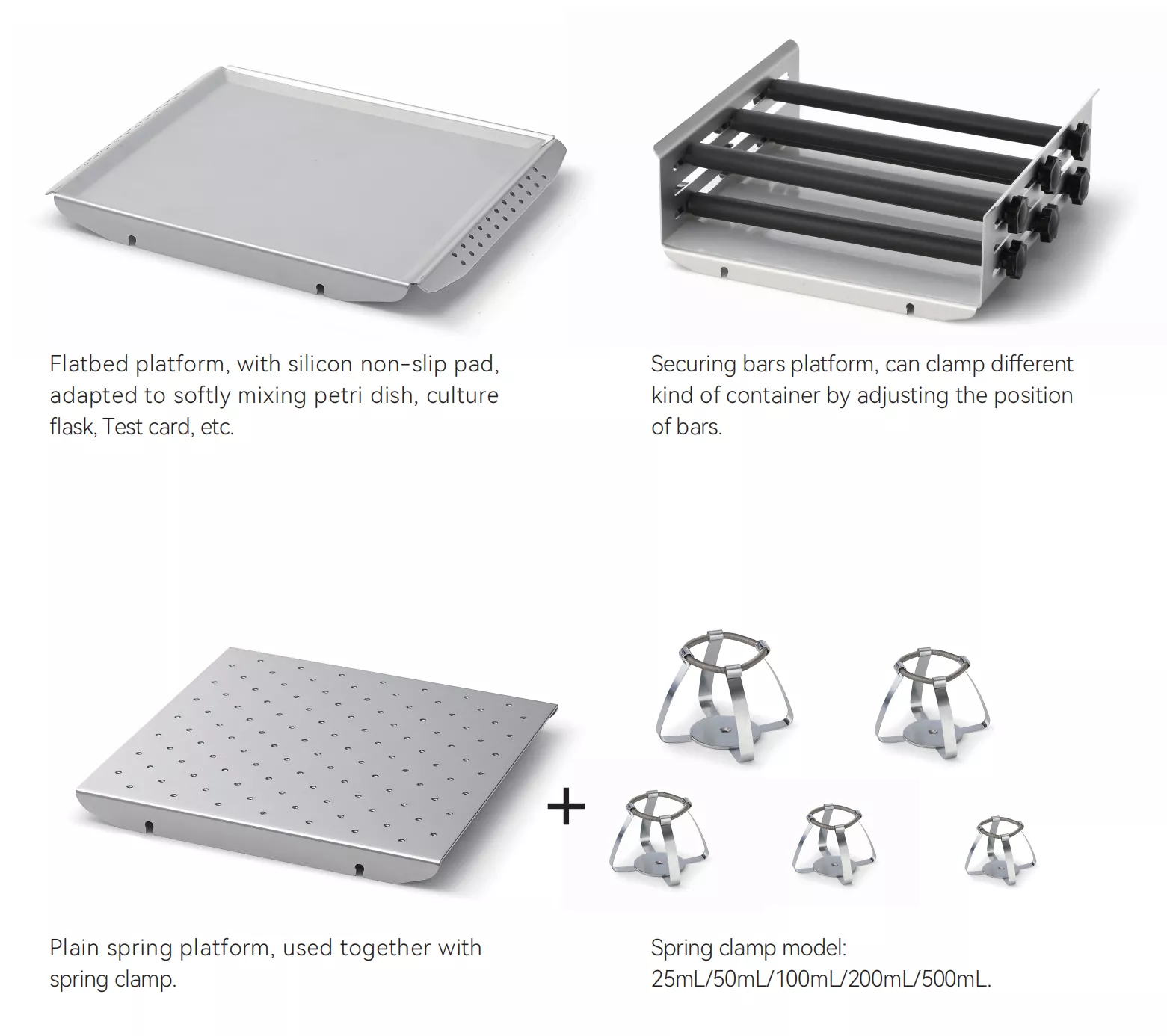

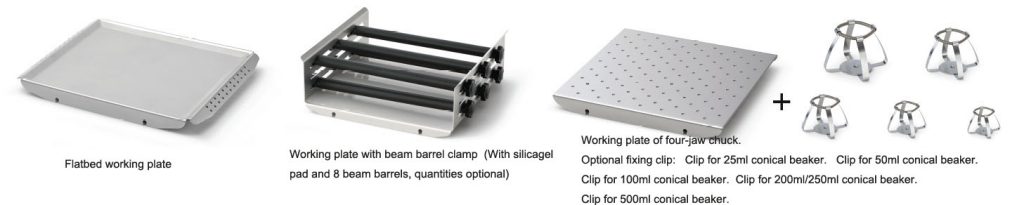

Accessories:
1. Flatbed working plate(with silicagel pad)
2. Working plate with beam barrel clamp  (With silicagel pad and 8 beam barrels, quantities optional)

3. Working plate of four-jaw chuck.
Optional fixing clip:
Clip for 25ml conical beaker.
Clip for 50ml conical beaker.
Clip for 100ml conical beaker.
Clip for 200ml/250ml conical beaker.
Clip for 500ml conical beaker.

Main Technical Data:

Operation method Circling and Reciprocating
Shaker diameter 10mm
Maximum loading weight(incl. fixing clips 7.5kg
Equipment input power 356W
Motor output power 10W
Motor type BLDC
Speed range 100-500rpm / 40-350rpm
Speed display LCD
Timer display LCD
Time setting Range 1-19h59min
Operation mode Timing/Continuous
Shaking table lock Yes
Dimension (WxHxD) 420x360x100mm
Weight 13kg
Permissible ambient temperature 5-50°C
Permissible relative moisture 80%
Protection class according to DIN EN 60529 IP21
Analog output Yes
Voltage AC 100-240V
Frequency 50/60Hz
