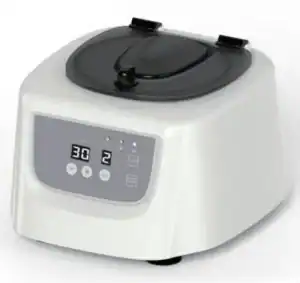

DM0306 Low Speed Centrifuge
Compact Low Speed Clinical Centrifuge featuring 3400 rpm / 1600xg separation, SE6-10P high-strength plastic rotor accommodating 6 x 3-10mL blood collection tubes, LED timer display, automatic lid locking, and whisper-quiet operation.
3400 rpm & 1600xg Max RCF | 6 × 3-10mL Rotor Capacity | Automatic Door Lock Safety | Gentle Braking Function
Applications
DM0306 is widely used in clinical practice and serves as an ideal choice for serum and plasma sample separation in biochemical and medical laboratories. It is a primary instrument for sample pretreatment in clinical laboratories, blood banks, medical schools, and medical research institutions.
Product Features
- Compact Footprint & Modern Design: Elegant aesthetic with small space occupation suitable for benchtop laboratory workstations.
- High Centrifugal Efficiency: Maximum rotation speed of 3400 rpm generating up to 1600×g relative centrifugal force.
- Versatile Rotor Capacity: Standard rotor capacity supports 6 × 3–10mL blood collection tubes.
- Electronic Timer & LED Display: Digital timer with setting range of 0.5 to 30 minutes and continuous running mode; clear LED screen displays remaining run time.
- Gentle Braking Control: 1-gear acceleration (<10s) and 3-gear deceleration (<20s) with gentle soft braking to protect delicate blood samples.
- Automatic Lid Lock Safety: Upper cover locks automatically during operation; mechanical door lock prevents cover opening until rotation stops.
- Transparent Inspection Cover: Transparent top cover provides clear sample observation and optical speed calibration convenience while ensuring maximum safety and durability.
- Quiet & Reliable Operation: AC fixed frequency brushless motor delivers smooth, maintenance-free performance with low noise levels (≤63dB).
Technical Specifications
| Specification Parameter | DM0306 |
|---|---|
| Maximum Speed | 3400rpm |
| Maximum Relative Centrifugal Force (RCF) | 1600×g |
| Rotor Capacity | 6×3mL-10mL Blood collection tube |
| Maximum Acceleration Time | <10S |
| Maximum Deceleration Time | <20S |
| Timer Display | LED |
| Time Setting Range | 0.5-30min / Hold |
| Speed Up / Down Gear | 1↑ / 3↓ |
| Motor Type | AC fixed frequency brushless motor |
| Shell Protection Level | IP20 |
| Noise Level | ≤63dB |
| Voltage / Frequency | 100-120V / 200-240V, 50Hz / 60Hz |
| Power | 80W |
| Protection Circuit Breaker | 4A Replaceable |
| Dimensions [Length × Width × Height] | 359 × 318 × 222mm |
| Weight | 5.3kg |
| Permissible Ambient Temp & Humidity | 5-40°C, 80% RH |
| Security Performance | Explosion proof test, door lock protection, manual door lock can be unlocked |
Standard Rotor Specifications
| Rotor Model | Cat. No. | Maximum Speed | Maximum RCF | Maximum Capacity | Material |
|---|---|---|---|---|---|
| SE6-10P | 19400145 | 3400rpm | 1600×g | 6×10mL (3–10mL blood collection tubes) | High strength plastic |
