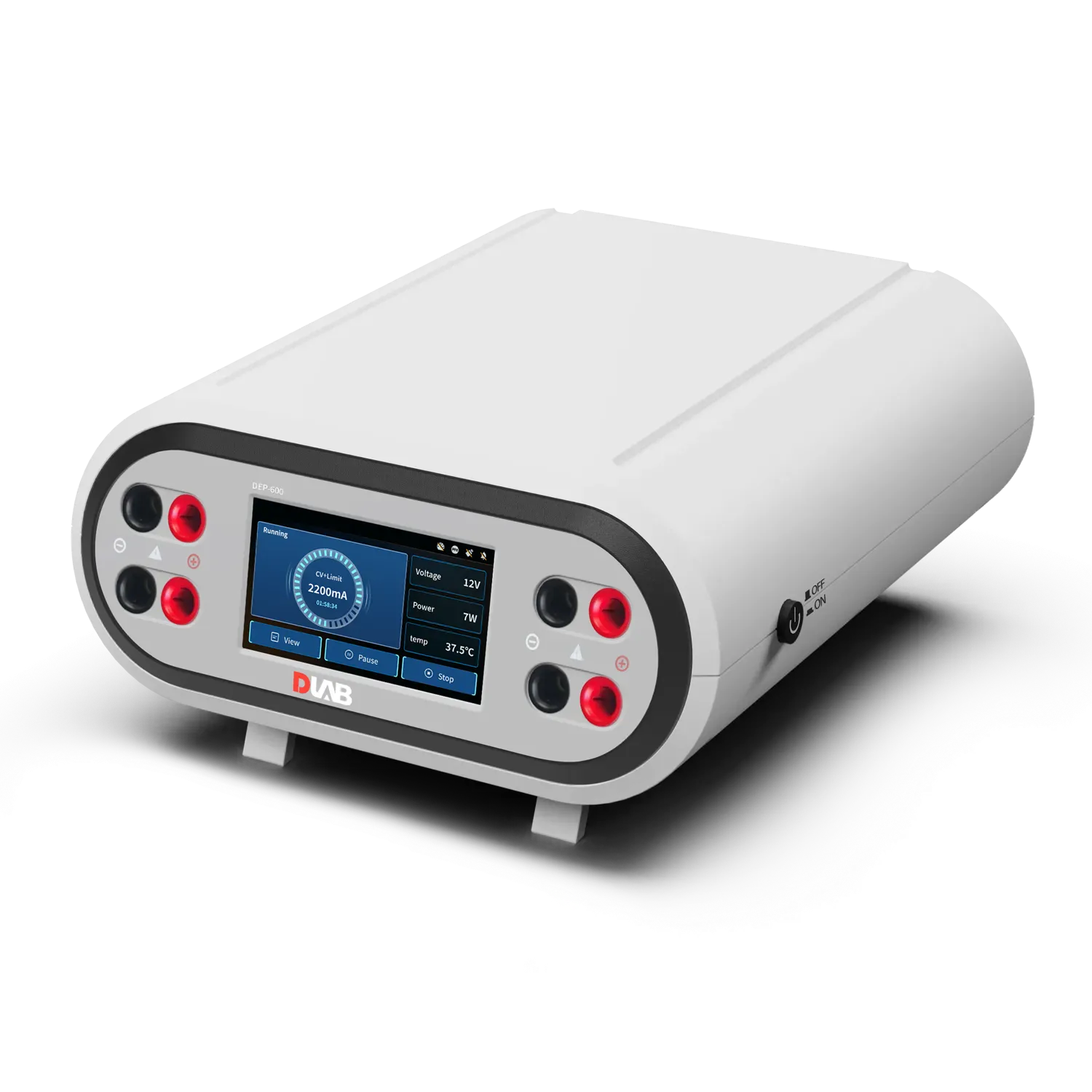

DEP-300 / DEP-600 / DEP-300HC Electrophoresis Power Supplies
High-precision programmable electrophoresis power supplies featuring full LCD touchscreen interfaces, four parallel output sets, and automatic cross-over between constant voltage, constant current, and constant power modes.
Color LCD Touchscreen | 4 Simultaneous Output Sockets | Constant V / I / W Modes | Real-Time USB Data Logging
Key Features
- Intuitive Color Touchscreen: Graphical interface allows fast multi-step programming, progress monitoring, and parameter adjustment.
- Four Output Sockets: Supports simultaneous connection and running of up to 4 electrophoresis tanks.
- Three Operating Modes: Constant Voltage, Constant Current, and Constant Power with automatic parameter crossover.
- Real-Time Data Recording: Standard USB interface exports operational voltage, current, and run curves for audit compliance.
- Multi-CPU Stability: Advanced digital multi-processor architecture delivers rock-solid electrical output and low ripple.
- Comprehensive Safety Protection: Short-circuit detection, no-load shutdown, rapid resistance change alarm, and over-current protection.
- Space-Saving Stackable Design: Anti-slip top grooves and pop-up elevation feet enable safe multi-unit vertical stacking.
Applications
DEP-300 is ideal for routine mini horizontal DNA/RNA agarose electrophoresis. DEP-600 covers SDS-PAGE, Native-PAGE, vertical protein separation, and high-throughput submarine tanks. DEP-300HC provides high current (up to 3000 mA) specifically optimized for rapid Western blotting and tank transfer.
Technical Specifications
| Specification | DEP-300 | DEP-600 | DEP-300HC (High Current) |
|---|---|---|---|
| Voltage Range | 0 – 300 V (res: 1V) | 0 – 600 V (res: 1V) | 0 – 300 V (res: 1V) |
| Current Range | 0 – 600 mA (res: 1mA) | 0 – 600 mA (res: 1mA) | 0 – 3000 mA (res: 1mA) |
| Power Range | 0 – 150 W (res: 1W) | 0 – 360 W (res: 1W) | 0 – 400 W (res: 1W) |
| Output Types | Constant V, Constant I, Constant W | Constant V, Constant I, Constant W | Constant V, Constant I, Constant W |
| Display | LCD Touchscreen | LCD Touchscreen | LCD Touchscreen |
| Time Setting Range | 1 min – 99 h 59 min | 1 min – 99 h 59 min | 1 min – 99 h 59 min |
| Output Sockets | 4 parallel sets | 4 parallel sets | 4 parallel sets |
| Data Interface | USB | USB | USB |
| Power Failure Recovery | Yes (selectable ON/OFF) | Yes (selectable ON/OFF) | Yes (selectable ON/OFF) |
| Power Supply | 100-140V / 195-245V, 50/60Hz | 100-140V / 195-245V, 50/60Hz | 100-240V, 50/60Hz |
| Dimensions (L × W × H) | 310 × 260 × 115 mm | 310 × 260 × 115 mm | 310 × 260 × 115 mm |
| Weight | 1.90 kg | 1.96 kg | 2.05 kg |
Note: Low-noise high-efficiency internal cooling fan automatically modulates speed based on power load.
