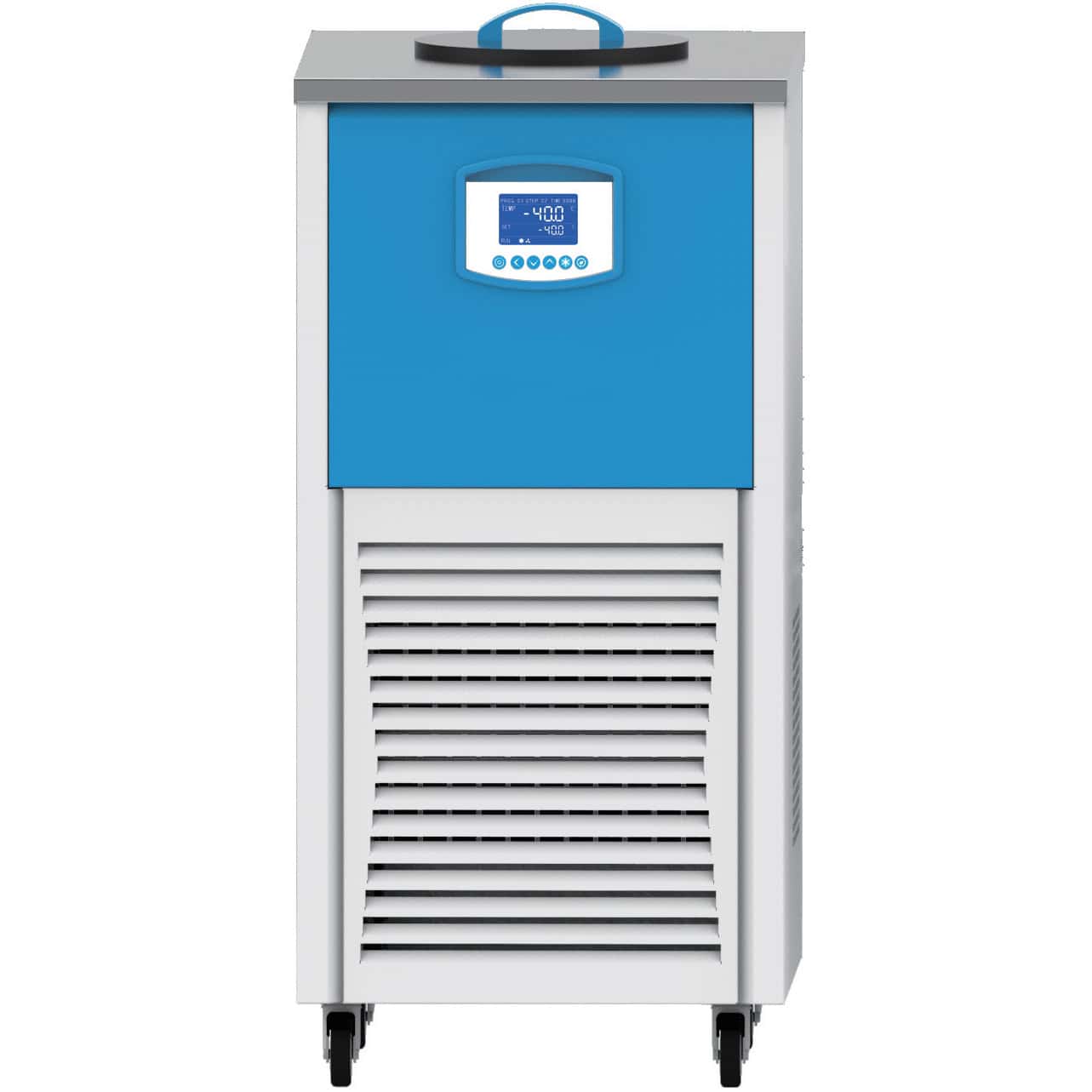

Product Overview
This new generation of compact recirculating chillers has a new CFC-free, environmentally friendly design to keep you at the forefront of healthy living. Incorporating adopted overseas technology, it offers precise temperature control, compact volume, branded compressors and circulating pumps, low noise, high flow, rapid cooling, high efficiency and low energy consumption. It promotes energy savings and provides long service life, with cooling time reduced by 35% compared with conventional equipment.
Product Features
- An LCD controller displays multiple data sets on one screen, with a menu-driven interface and accurate, reliable temperature control, allowing operating status to be checked at any time;
- Compressor overheating and overload protection, plus a flashing display and audible alarms for high or low bath-fluid temperature and refrigeration-system overpressure;
- The open bath can serve as a pre-freezing or low-temperature bath. Glassware can be placed inside for constant-temperature experiments with acidic and organic solutions;
- The bath lid opens for real-time observation of the cooling liquid;
- 304 stainless-steel heat-exchanger tubing resists wear and vibration-induced breakage and is easy to clean and maintain;
- A magnetic front panel can be opened quickly without tools to clean dust from the condenser;
- The compact design accommodates laboratories with limited space;
- One recirculating chiller can cool multiple rotary evaporators simultaneously to meet cooling requirements, allowing multiple uses from one unit;
- An optional R485 communication interface allows computer display or export of experimental data, supporting data storage and playback;
Optional Accessories:
1. RS485/232 interface and communication software
Technical Specifications
| Product Name | Recirculating Chiller | |||||
|---|---|---|---|---|---|---|
| Model | BWR-03A | BWR-05A | BWR-10A | BWR-20A | BWR-50A | |
| Maximum Reservoir Capacity (L) | 5 | 8 | 15.5 | 30 | 62 | |
| Refrigeration Performance | Minimum Temperature without Load (°C) | -20°C | ||||
| Temperature Setting Range (°C) | -20°C~20°C (no heating) | |||||
| Temperature Stability (°C) | ±2°C | |||||
| Cooling Capacity (@10°C / W) | 450 | 600 | 1800 | 2500 | 4500 | |
| Refrigerant (Environmentally Friendly) | R404A | R410A | ||||
| Electrical Performance | Controller Display | LCD / digital display | ||||
| External Connection Port | R485/USB (optional) | |||||
| Total Power (W) | 550 | 600 | 1300 | 1600 | 2400 | |
| Safety Protection | Delayed compressor start; earth-leakage, overcurrent and overvoltage protection | |||||
| Power Supply Specification | AC 220V±10% / 50Hz | |||||
| Circulating Pump Specifications | Circulating Pump Power (W) | 30 | 60 | 550 | ||
| Maximum Circulating Pump Flow Rate (L/min) | 6 | 17 | 30 | |||
| Maximum Pump Head (m) | 9 | 15 | 25 | |||
| Liquid Inlet/Outlet Pipe Diameter (mm) | DN10 (adapter to φ10 hose barb) | DN15 (adapter to φ12 hose barb) | ||||
| Unit Functions | Unit Support | Feet | Casters | |||
| Bath Lid | Rectangular / MP | Rectangular / MPG | ||||
| Compressor Selection | CE certification | |||||
| External Circulation Pump Selection | DC booster magnetic-drive pump | Turbine pump | ||||
| Unit Noise | ≤45 | ≤55 | ≤65 | ≤75 | ||
| Total Weight (Kg) | 32 | 41 | 60 | 76 | 126 | |
| Fluid Capacity (L) | 3.5 | 5 | 13 | 25 | 52 | |
| Bath Dimensions (mm) | 240×150×150 | 240×200×170 | 270×240×240 | 350×350×250 | 470×430×310 | |
| Overall Dimensions (mm), Excluding Casters | 230×450×511 | 315×455×570 | 400×500×739 | 450×600×821 | 560×845×850 | |
| Compatible Rotary Evaporators (Volume × Quantity) | 2L×1 | 5L×1 | 10L×1 | 10L×2/20L×1 | 20L×2/50L×1 | |
| Remarks | 1: An extended temperature range (-30°C) can be customized; 2: Equipment can be customized for different supply voltages and frequencies; 3: Liquid circulation systems with different flow rates and heads can be customized; 4: An external magnetic stirring device can be customized. |
|||||
