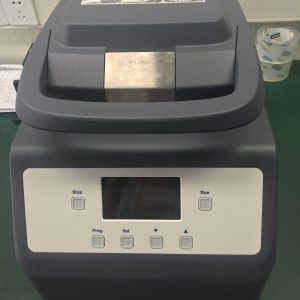

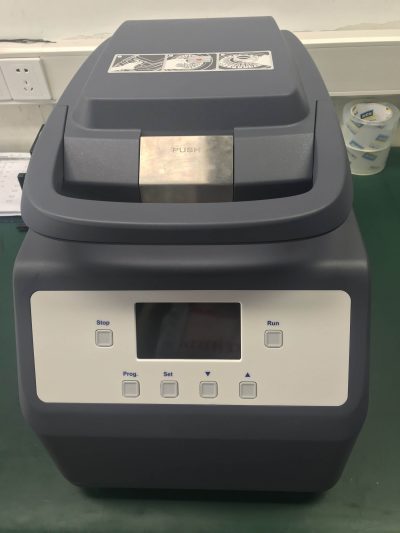

Homogenizer — Bioprep-24R
Bioprep series biological sample homogenizer is a fast homogenizer that integrates three functions of grinding, lysis and homogenization. It achieves the purpose of grinding, lysis and homogenization the sample through three-dimensional high-speed vibration and beating of grinding beads (glass beads, ceramic beads, steel balls, etc.). Fast, effective and reproducible homogenization of a wide range of samples, including tissues and cells hard to lyse.
Bioprep-24R is your solution for sample preparation and cell lysis. The reliable, fast and high-throughput homogenizer to extract DNA, RNA or proteins from animals, human and plant tissues, micro-organisms, spores, bones, etc.
Introduction:
The Bioprep-24R biological sample homogenizer is a fast and high-throughput homogenizer that integrates three functions: grinding, lysis, and homogenization. It uses three-dimensional high-speed vibration and the beating of grinding beads (glass beads, ceramic beads, steel balls, etc.) to achieve the purpose of grinding, pyrolyzing, and homogenizing the sample. It can effectively homogenize samples of animal and plant tissues, bacteria, fungi, etc. It is very effective for samples that are difficult to handle with general equipment, such as spores, hair, bones, feces, soil, etc., with relevant kits, it can be quickly, efficiently, stably, and batched. Extract DNA/RNA/protein, etc. in the sample, and preserve the integrity of these biomolecules.
Features:
1. It can homogenize most samples and retain the integrity of biomolecules (DNA, RNA, protein) and drug molecules
2. It can process 24 2ml samples/12 5ml samples at the same time–Bioprep-24R
3. Different materials of grinding beads and corresponding procedures can be selected for different samples
4. Precisely set homogenization time and running speed, and can store 50 programs
5. Use a separate crushing tube for each sample, so there will be no cross-contamination
6. Grinding beads with a variety of materials and diameters are available for different types of samples
7. Not only saves time and effort, but also has smaller differences between batches and within batches
Technical Parameters:
Temperature setting range: -10~40℃
Time required to decrease to 0℃: 30min
Uniformity of inner tank: ≤±2℃
Display interface: OLED
Oscillation speed: 4.00m/s～7.00m/s (in increments of 0.05m/s)
Oscillation speed: 2430rpm–4260rpm, step 10rpm
Running time: 1s–90s, in increments of 1s
Gap time: 1s–120s, in increments of 1s
Number of cycles: 10
Storage procedures: 50
Sample size: 24x2ml/1.5ml grinding tubes or 12x5ml grinding tubes
Acceleration time: <4s
Deceleration time: <4s
Noise level: <70db
Maximum input power: 1000W
Dimensions (W×D×H) mm: 330mm×520mm×400mm
Weight (kg): 40.0kg
Power supply: AC100-240V, 50/60Hz
Optional accessories:
AS-13011-01: Rotor for 24×2.0 ml (Bioprep-24/Bioprep-24R)—Standard
AS-13011-30: Rotor for 12×5.0 ml (Bioprep-24/Bioprep-24R)
AS-13011-03: 2.0 ml grinding tube
AS-13011-04: 5.0 ml grinding tube
AS-13011-05: Φ1.4 mm ceramic beads
AS-13011-06: Φ2.8 mm ceramic beads
AS-13011-07: Φ3 mm metal beads
AS-13011-08: Φ6 mm metal beads
AS-13011-09:Φ0.2 mm glass beads
AS-13011-10: Φ0.5 mm glass beads
AS-13011-11: Φ1.0 mm glass beads
AS-13011-12: Φ3.0 mm glass beads
AS-13011-13: Φ1.4 mm metal beads
AS-13011-14: Φ4.0 mm metal beads
AS-13011-15: Φ2.8 mm zirconium carbonate
