Description

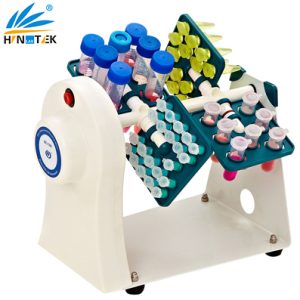

This uniquely designed instrument can rotate sample tubes both vertically and horizontally by simply rotating
the panel.  It is widely used in molecular hybridization and various blood sample mixtures.  There are four
fixtures on the rotating panel that can be adjusted individually to provide four different hybrid modes in a mixture.
This instrument is light, compact and convenient.  It can be easily moved to a test – bed, refrigerator or incubator.
The shell and rotating panel is made with a special design that is easy to clean and decontaminate.
Standard configuration:
21 centrifuge tubes of 0.5 ml x 2 (fixtures)
15 centrifuge tubes of 1.5 ml / 2 ml x 2 (fixtures)
7 centrifuge tubes of 5 ml / 7 ml x 2 (fixtures)
7 centrifuge tubes of 10 ml / 15 ml x 2 (fixtures)
6 centrifuge tubes of 50 ml (fixtures)




Rotating speed:                                          18 rpm
———————————————————————————————————————————
Dimensions (W x D x H):                               240 x 145 x 210 mm
———————————————————————————————————————————
Temperature range:                                   4 to 65 degrees Celsius
———————————————————————————————————————————
Capacity:                                            4 W
———————————————————————————————————————————
Weight:                                            1 kg
———————————————————————————————————————————
Power:                                      220 V / 50 HZ
———————————————————————————————————————————
