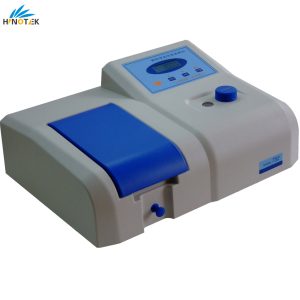

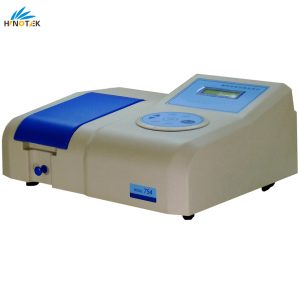

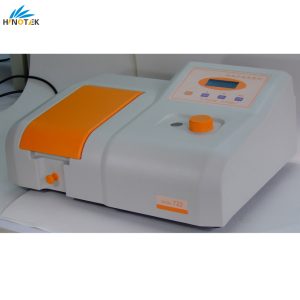

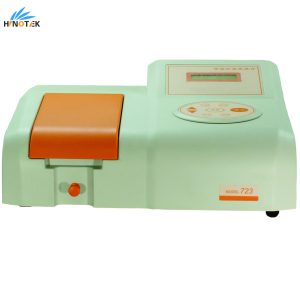

7 Series Spectrophotometer
7 Series UV-Visible Spectrophotometer adopts microprocessor control technology, can meet the requirements of qualitative and quantitative tests for most samples in conventional laboratories. The instrument is widely used in medical and health, clinical examination, biochemical, chemical engineering, environmental protection, food industry, academy and quality control departments, etc. The instrument with a low price and high performance is your best choice.
1. The instrument adopts LCD display and a sample compartment for 0.5~10 cm cells.
2. Keyboard operation is simple & clear, “the key of spectroscopic ” can use easily adjust 0% & 100% automatically, and there is the function of automatic 0%(T), 100%T adjustment and no error T-A transform. The factor can be set, the display result may be consistency. RS232 port is equipped.
3. The automatic switch apparatus of the light source is equipped with high precision auto-scan structure in UV Spectrophotometer.
4. Excellent technics and strict components selection make the instrument have outstanding measure repeatability and stability.
5. Patent be gained Streamline form, the popular paint which resists to the chemistry, suitable to the modern laboratory environment.
Specification:
|
Model |
754/756 |
752 |
723/723PC (Visible) |
722 |
721 |
|
Wavelength Range (nm) |
200~1000 |
195~1020 |
325~1000 |
325~1020 |
360~1000 |
|
Transmission Ratio Range (%T) |
0.0~125.0 |
0.0~199.9 |
0.0~125.0 |
0.0~199.9 |
0.0~199.9 |
|
Absorbency Range (A) |
-0.097~2.5 |
-0.301~1.999 |
-0.097~2.5 |
-0.301~1.999 |
-0.301~1.999 |
|
Consistency Display Range |
0~1999 |
0~1999 |
0~1999 |
0~1999 |
0~1999 |
|
Wavelength Accuracy (nm) |
±1 |
±2 |
±1 |
±2 |
±3 |
|
Spectrum Bandwidth (nm) |
4 |
4 |
4 |
4 |
5 |
|
Measure precision (%T) |
0.5 |
0.5 |
0.5 |
0.5 |
1 |
|
Stray Light (%T) |
≤0.3(@220nm) |
≤0.3(@220nm) |
≤0.3(@360nm) |
≤1 |
|
|
scan software |
NO /YES |
NO |
NO /YES |
NO |
NO |
|
Power Supply Voltage (V) |
110V or 220V ±10% 50~60HZ |
||||
|
Output Port |
RS232
|
NO
|
|||
|
Dimensions (mm) |
460*360*200 |
||||
|
Package |
550*440*280 |
||||
|
Gross Weight/Net Weight (kg) |
12/10 |
12/10 |
12/10 |
10/8 |
10/8 |
|
Standard Configure |
1 CM Glass Cell 1 Set |
1 CM Glass Cell 1 Set |
|||
|
1 CM Quartz Cell 1 Set |
|||||
|
Optional |
5~10cm Sample Holder |
||||
