Obtained China Metrology Accreditation Certificate
Large data storage space
Large TFT display screen
Modern and fashionable design based on human engineering
Easy to use operation modes and compact operation interface
Pre-locating panel design for easy instrument calibration
Uses LED light source; high capacity rechargeable lithium-ion battery
Can measure both SCI(specular included)and SCE(specular excluded) at the same time
USB data transmission ,includes PC software to manage data
Can connect to mini-printers for printing

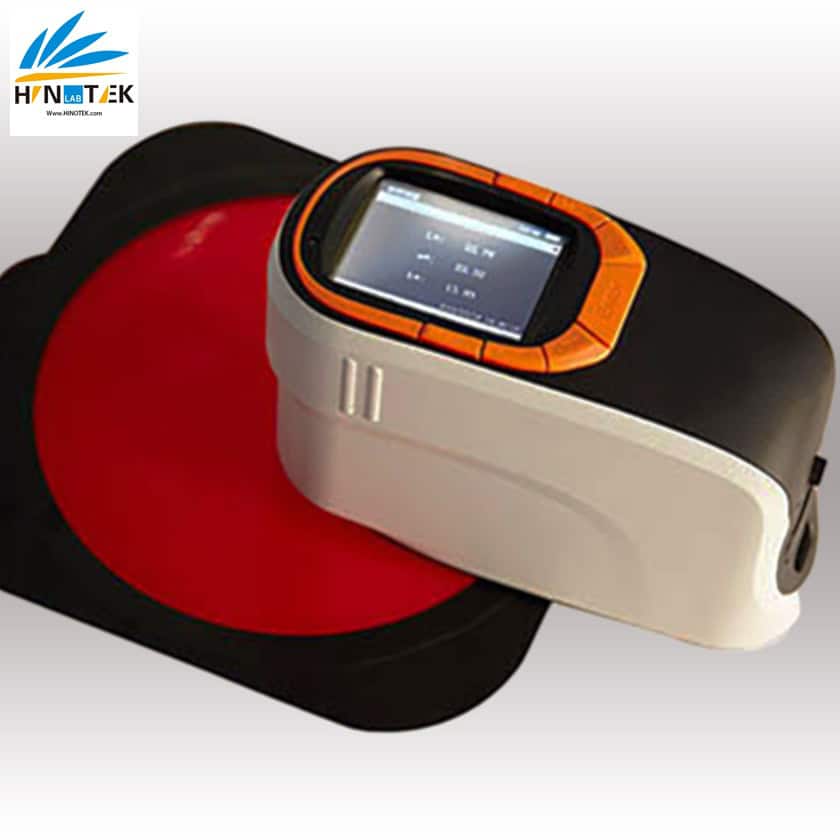

Product Overview
High performance-price ratio among international similar products
As China’s spectrophotometer, it integrates multiple innovative technical characteristic,
and extends the boundary of on-site color quality control during production;
- It can be applied to laboratories, factories and on-site operations, and can achieve the best color
management across all application fields’quality control; - Allows medium and small companies to obtain high performance color management system with relatively low price;
- The software contains all necessary color equations, standard light sources, and a large number of standards for specific industries and applications;
- Operation system supports both English and Chinese interfaces, and we offer to design the interface in other languages based on the need of our customers.
- Professional design, powerful instrument functions
- Professional horizontal design and it does not have any moving parts, which avoids the shaking of the instrument during measurement process. This makes the measurement more accurate; PC software for easy measurement data management;
- Different measurement caliber for A and B. Testing ports for the two instruments are to the left. Can measure both SCI and SCE at the same time. Large data storage space: can store up to 100 sets of standard samples, with up to 200 measurement records for each standard sample;
Specifications
| Illumination | d/8(Diffused lighting, 8 degrees observe angle) ; SCS optical engine(light splitting and integration system),ETC ; (real time calibration technology), SCI(specular reflection included) ; /SCE(specular reflection excluded)simultaneous measurement。(conform to CIE No.15、ISO 7724/1、ASTM E1164、DIN 5033 Teil7、 JIS Z8722 Condition c standards) |
| Size of integrating sphere | Φ40mm，Alvan diffused reflection surface coating |
| Illumination Light source | Composite LEDs(entire wavelength balanced LED light source) |
| Sensor | dual light path sensor array |
| Wavelength range | 400-700nm |
| Wavelength interval | 10nm |
| Half spectral width | 5nm |
| Reflectivity range | 0-200% |
| Reflectivity resolution | 0.01% |
| Observation angle | 2°/10° |
| Measurement light source | A,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12, |
| CWF,U30,DLF,NBF,TL83,TL84 | |
| Data being displayed | SPD distribution/data，sample’s color values，color difference values/graph，pass/fail ; results，color error tendency，color simulation，display measurement area，history data color simulation，manual input standard sample，generate measurement report |
| Measurement time interval | 0.5 seconds |
| Measurement time | 1 second |
| Color space | CIE-L*a*b,L*C*h,L*u*v,XYZ,Yxy,reflectivity,Hunterlab,Munsell MI |
| Color difference formulas | ΔE*ab,ΔE*CH,ΔE*uv,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*94,ΔE*00,ΔEab(Hunter),555 |
| ,color classification | |
| Other colorimetric indices | WI(ASTM E313-00,ASTM E313-73,CIE/ISO,AATCC,Hunter,Taube |
| Berger Stensby),YI(ASTM D1925,ASTM E313-00,ASTM E313-73),Tint(ASTM E313,CIE,Ganz),metamerism index Milm, adhesive/changing | |
| color fastness, ISO luminance,8 gloss, A density, T density | |
| Repeatability | light splitting reflectivity：standard deviation within 0.08% |
| color values：ΔE*ab<=0.015（After calibration, standard deviation of | |
| 30 measurements on test white board, 5 second intervals）， | |
| Maximum：0.03 | |
| Battery capacity | rechargeable, 20000 continuous tests, 7.4V/6000mAh |
| Interface | USB, bluetooth |
| Data storage | 40000 test results |
| Light source longevity | 10 years, 3 million tests |
| Inter-instrument agreement | ΔE*ab within 0.2(BCRA color charts II, average of the 12 charts) |
| Size | 181*73*112mm(L*W*H) |
| Weight | about 550g(does not include battery’s weight) |
| Display | True color screen that includes all colors |
| Work temperature range | 0~45℃, relative humidity 80% or below( at 35°C ),no condensation |
| Storage temperature range | -25℃ to 55℃，relative humidity 80% or below(at 35°C ),no condensation |
| Standard accessories | DC adapter, Lithium battery, manual, color management software, |
| drive software, electronic manual, color management guide, | |
| USB cable, black/white calibration tube, protective cover, spire lamella, | |
| portable bag, electronic color charts | |
| Optional accessories | powder molding device, microprinter, measurement and test report |
| Color matching system | Matches |
| UV light source | Does not include UV light source |
