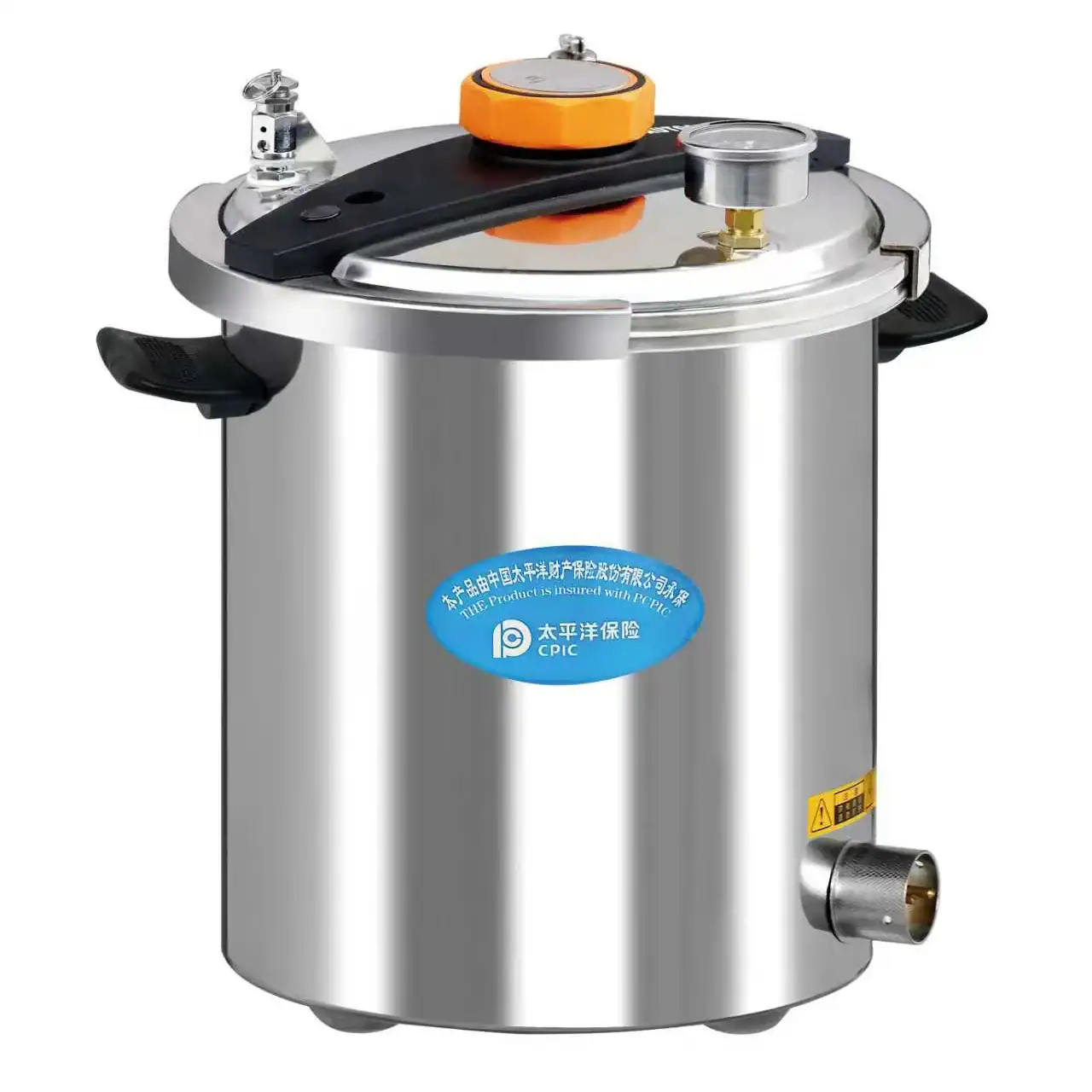

YX-18HM/YX-24HM Portable Pressure Steam Sterilizers
Use
The product utilizes saturated steam to rapidly and efficiently sterilize articles. It can be used in hospitals, public health centers, health stations, clinics in factories and mines, scientific research institutes, etc, to sterilize medical equipment, surgical dressings, glass utensils, solutions, substrata. It can also be used as cooker in plateau areas and be used to make high quality drinking water in industrial and mining enterprises.
Characteristics
- Fully stainless steel structure.
- Quick-rotary-open structure, one-hand opening and closing
- Double scale indication pressure gauge.
- the door, quick and safe.
- Electric or LPG heated.
- The brand-new gear design allows it open and close smoothly, with no jamming at all, more convenient.
- Easy to operate, safe and reliable.
- Multiple safety protections.
- Door safety lock system.
Technical Data
| MODEL Technical Data |
YX-18HM | YX-24HM |
|---|---|---|
| Sterilizing volume | 18L Φ 280 × 260mm | 24L Φ 280 × 390mm |
| Max. working pressure | 0.16MPa | |
| Max. working temperature | 126°C | |
| Max. safety pressure | 0.18MPa | |
| Power | 2KW/AC220V.50Hz | |
| Transport dimension(mm) | 410 × 410 × 430 | 410 × 410 × 550 |
| G.W/N.W | 16kg / 14kg | 17kg / 15kg |
