High efficiency, flexibility and stability are the characters of this series microscope. It is specially developed for various applied scopes. It is widely used, from daily work to scientific research, in Laboratory, Hospitals and Colleges. Because of higher capability with lower price and humanized configuration design, It also becomes the first choice of individual, Schools, and Scientific research organization.
Features:
1. Wide-field Eyepiece, high light illumination and superior optical
parts make the image clear, sharp and bright.
2. Backward nosepiece with superior objectives makes the best viewing
effect and more space for the operator.
3. Wide mechanical stage with 2-Microslide specimen clamp provides more
convenience for the observer.
4. High precision focusing adjustment system and humanized configuration design provide operator more comfortable.
5. Frontal undrawing type Light collector framework, makes the user change the bulb more quickly and easily.
|
Specification
|

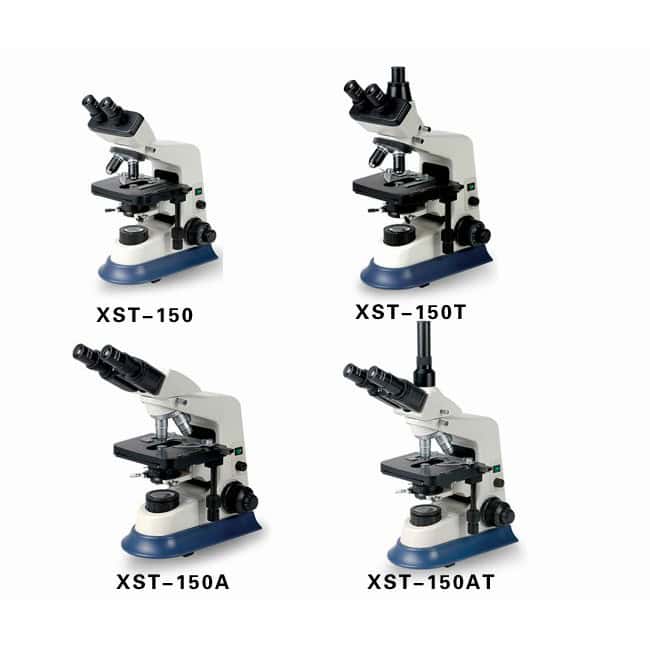

Model
|
||||
|
XSZ-150
|
XSZ-150T
|
XSZ-150A
|
XSZ-150AT
|
||
|
Viewing head
|
Sliding Binocular Head.Inclined at 4 5 °
( 52mm -74mm)
|
●
|
|||
|
Compensation Free Binocular Head .
Inclined at 30 ° ( 55mm -75mm )
|
●
|
||||
|
Sliding Free Trinocular Head .Inclined
at 45 ° ( 52mm -74mm )
|
●
|
||||
|
Compensation Free Trinocular Head .
Inclinedat30 ° ( 55mm -75mm )
|
●
|
||||
|
Eyepiece
|
WF10X
|
●
|
●
|
●
|
●
|
|
Objective
|
Achromatic objective: objective:4X,10X,40X
(S),100X(S)Oil
|
●
|
●
|
●
|
●
|
|
Stage
|
Double layers mechanical stage
|
●
|
●
|
●
|
●
|
|
Stage size:180mmX 150mm
|
●
|
●
|
●
|
●
|
|
|
Moving range :75mmX 50mm
|
●
|
●
|
●
|
●
|
|
|
Condenser
|
N. A.1.25 Abbe condenser with iris
diaphragm & filter
|
●
|
●
|
●
|
●
|
|
Focusing
|
Coaxial coarse&fine focusing adjustment
with rack and pinion mechanism Fine focusing scale Value 0.002mm
|
●
|
●
|
●
|
●
|
|
Collector
|
High brightness Kohler illumination
|
●
|
●
|
●
|
●
|
|
Light source
|
Halogen tungsten bulb12V/20W.AC85V-
230V
|
●
|
●
|
●
|
●
|
|
Adjustable brightness
|
|||||
|
Optional Accessory
|
Eyepieces: WF16x,WF20x,P16x
and CMOS electronic eyepiece of 1.3 Mega pixels
Plan-Objectives: 4X,10X,20X(S),40X(S),60X(S),100X(S)Oil
Semi-plan objectives: 4X,10X,20X(S),40X(S),60X(S),100X(S)Oil
Infinity objectives: X,10X,20X(S),40X(S),60X(S),100X(S)Oil
Phase Contrast Attachment
photo and CCD attachment
|
||||
