Specification
|

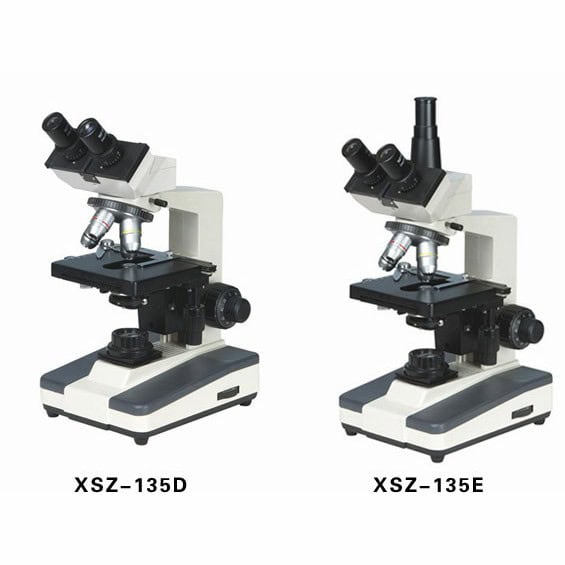

Model
|
||
XSZ-135D
|
XSZ-135E
|
||
Viewing Head
|
Sliding Binocular Head, Inclined at 45°(55mm-75mm)
|
●
|
|
Sliding Trinocular Head, Inclined at 45°(55mm-75mm)
|
●
|
||
Eyepiece
|
WF10×/18mm
|
●
|
●
|
Objective
|
Achromatic 4×、10×、40×(s)、100×(s)Oil
|
●
|
●
|
Stage
|
Double layer mechanical stage
|
●
|
●
|
Stage Size:140mm×140mm
|
|||
Moving Range:70mm×50mm
|
|||
Condenser
|
N.A.1.25 Abbe condenser with iris diaphragm and filter
|
●
|
●
|
Focusing
|
Coaxial coarse & fine focusing adjustment Fine focusing
scale value 0.002mm
|
●
|
●
|
Light Source
|
Halogen bulb 6V20W or 6V15W, AC 220V/110V
|
●
|
●
|
Adjustable light source with Kohler illumination
|
|||
Optional Accessory
|
Eyepiece:WF16×、WF20×、P16×
Objective:20×、60(s)
Semi-plan Objective:4×、10×、20×、40×(s)、60×(s)、100×(s)oil
Plan Objective:4×、10×、20×、40×(s)、60×(s)、100×(s)oil
Reflective Mirror, Demonstration(Teaching) HeadDark field and Phase contrast device
1.3Mega、2.0Mega、3.0Mega、5.0Mega pixels CMOS Digital camera eyepiece
Photography attachment and CCD Adapter 0.5×、0.57×、0.75×
Compensation Free Binocular & Trinocular Head (48mm-75mm)
LED illumination
|
