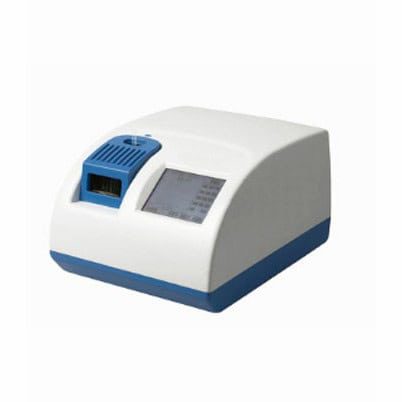

Visual Melting Point Apparatus

LCD touch screen

USB & RS232 interface

PID controller

Together with Visual window and Photoelectric test

Three samples can be measured at the same time


Model BMP-3
measuring range RT -320° C
Resolution 0.1° C
Linear Heating-up Rate 0.2,1.0,3.0℃/min
Capillary φ1.4mm(outside diameter)φ1.0mm(inside diameter), 100mm
Temperature Accuracy 5°C(≤ 200℃ );0.8°C(>200℃)
Sample Loading Height 3-5mm
Power Supply AC110/220V±10%,50/60Hz
External Size(W*D*H) 330*330*160mm
Packgage Size(W*D*H) 492*428*357mm
Gross Weight









SKU: BMP-3 Categories: , Tag:
