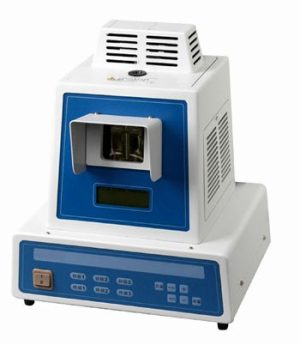

Visual melting point apparatus

It is used to measure the melting point of medicine, dye-stuff and perfume and other organic crystal substances to determine their purity. Measurement method is in conformity with the standard of pharmacopoeia.

It can measure three samples at the same time and calculate average value of initial and final melting points automatically.

Model BMP-R
Measuring Range 40~280° C
Display LCD
Resolution 0.1° C
Temperature Accuracy 0.4°C (≤200°C)

0.7°C (> 200°C)

Repeatability (Linear heating-up rate=1.0°C /min)0.3° C
Linear Heating-up Rate 0.5, 1.0, 1.5, 3.0° C/min
Deviation of Linear Heating Rate 10% (setting value)
Interface RS232
PowerSupply AC 220V/110V±10%, 50/60HZ
ExternalSize 400*400*540mm
PackageSize 560*530*730mm
G.W 15kg
