BKBM-V2S

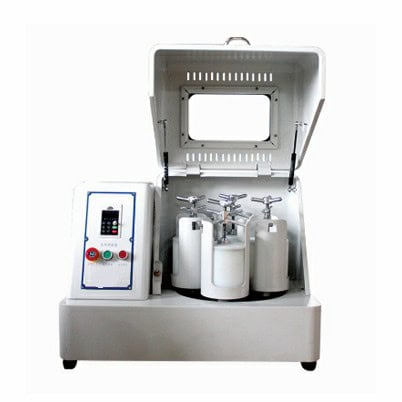

Vertical Planetary Ball Mill(Square Model)

Features:

* 3D curve shape design.

* Special gear with low noise.

Model BKBM-V2S
Capacity 2L
Volume of Each Capacity 50~500ml
Pot Quantity 4pcs
Running Time Range 1~9999min
Reciprocal Running Time 1~999min
Adjustable Speed Revolution 35~335rpm
Rotation 70~670rpm
Noise ≤60dB
Speed Control Mode Frequency Control
Transmission Mode Gear Drive
Working Mode 2 or 4 pots can be used each time
Max Volume of Each Pot 2/3
Feed Size Soft and Crispy material<10mm, Other materials<3mm
Out-put Granularity Minimum Granularity can be reached to 0.1um
Adjusting Mode of Rotate Speed Frequency converter with stepless speed regulation
Consumption 0.75KW
Power Supply AC110/220V±10%, 50/60Hz
External Size(W*D*H)mm 770*470*570
Packing Size(W*D*H)mm 820*540*680
Net Weight(kg) 93
Gross Weight(kg) 98
