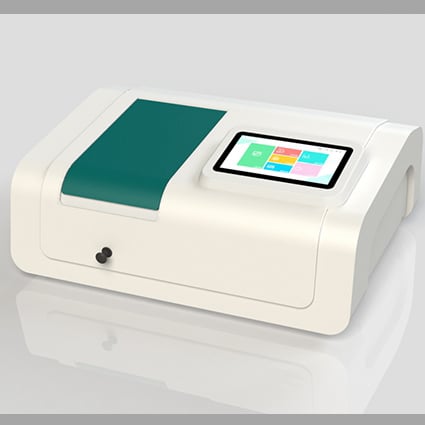

M-2800S Double Beam UV-V Spectrophotometer

SPECIFICATIONS

Introduction

● Host English operating system, 10-inch color touch screen display
● M-2800S successful implementation of the stringent requirements of high accuracy and reliability measurement to meet the requirements of various applications that can be used in biological research, bio-industry, pharmaceutical analysis, pharmaceutical, teaching and research, environmental protection, food hygiene, clinical examination, health and epidemic prevention and other fields.
● A wide wavelength range, the wavelength range to meet the various requirements of the field.
● The design of LSI greatly improves the scalability and reliability of the system
● Improved optimization of the optical design, import source and receiver system created a high performance and high reliability.
● Rich measurement methods, with a wavelength scan, time scan, multi-wavelength determination, multi-order derivative determination (optional), dual-wavelength, three-wavelength (optional) DNA protein measurements (optional), and other measurement methods to meet different measurement requirements, and can be displayed directly on a 10-inch screen.
● Based on user requirements optional hole rack, manual four with stand, manual Eighth rack, automatic Eighth frame, glass stand, test tube rack, 1cm colorimetric frame, 5cm colorimetric frame
● Support external U disk storage and transmission of experimental data.
● Can be powered down to save the measurement parameters and data, user-friendly.
● Can achieve more accurate and flexible measurement via PC control, which can meet the needs of different users.

Spec:

Optical path structure Double beam spectrophotometer
Wavelength Range 190~1100nm
Band Width 0.5/1.0/2.0/4.0/5.0nm adjustable
Wavelength Accuracy ±0.3nm
Wavelength Repeatability 0.1nm
Photometric Accuracy ±0.2% τ
Photometric Repeatability 0.1% τ
Stray Light ≤0.02% τ
Stability 0.0003A/h@500nm
Photometric Mode T,A,C,E
Wavelength Setting Automatic
Photometric Display Range -4~4A
Display Mode Touch LCD Screen (10 inches)
Detector Import Silicon Photodiode
Light Source Import Deuterium Lamp & Tungsten Halogen Lamp
Power Requirement AC 220V/50Hz 110V/60Hz
Dimensions(W*D*H) 650×430×240mm
Weight 21Kg
