Description

TMS-200/TMS-300 Turbo Thermo Shaker Incubator

The TMS-200 Turbo Thermo Shaker with 3000rpm is faster and more precise than other thermo-shaker devices on the market!
The TMS-200 / TMS-300 Turbo Thermo Shaker not only can blend various trace tube, PCR board, deep hole plate and microporous board laboratory commonly used consumables, still have various modules to heat the function of incubation.

Features
1. Thermoshaker for microplates, tubes, and glass vials
2. Fast shaking and mixing up to 3,000rpm (For TMS-200)
3. Perfectly controlled 3-dimensional mixing prevents spilling and lid wetting
4. Highly accurate processing and Anti-Vibration Technology eliminate vibrations for a relaxed working environment
5. 2 programmable soft keys, integrated vortex and short mix functions
6. Very small, light, efficient and quiet
7. Adapter Plates:
* Microplates: – 96-, 384-, and 1536-well microplates/deepwell plates/PCR plates
* Holder: – 0.2ml PCR tubes holder
– 0.5ml tubes holder
– 1.5/2.0ml tubes holder
– 15ml Micro tubes holder,
– 50ml Micro tubes holder
* Block: -10 types Aluminum blocks for user choosing

Specification

Model

TMS-200

TMS-300

Temperature Control Range

RT.+5~100

RT.+5~100

Temperature Setting Range

5~100

5~100

Temperature Control Accuracy

0.5

0.5

Temperature Accuracy @ 37

<0.25

<0.25

Temperature Uniformity

±0.5

±0.5

Heating Rate (from 20 to 100)

≤12min

≤12min

Display Accuracy

0.1

0.1

Speed Range

300~3000rpm

300~2000rpm

Mixing Orbit

2mm

3mm

Time range

0~99h59min

0~99h59min

Dimensions

240x170x165mm

240x170x165mm

Power supply

100~240V, 150W

100~240V, 150W

Weight

  4.5kg

4.5kg

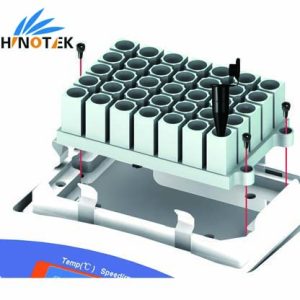

Block and Holder for TMS-200/TMS-300

Code

 Type

Description

AS-02051-01

  A-200

96 x 0.2ml

AS-02051-02

  B-200

54 x 0.5ml

AS-02051-03

  C-200

35 x 1.5ml

AS-02051-04

  D-200

35 x 2.0ml

AS-02051-05

  E-200

15 x 1.5ml+20 x 0.5ml

AS-02051-06

  F-200

24 x Dia.≤φ12mm tubes

AS-02051-07

  G-200

32 x 0.2ml+25 x 1.5ml

AS-02051-08

  H-200

32 x 0.2ml+10 x 0.5ml+15 x 1.5ml

AS-02051-09

  I-200

103 x 67 x 30mm Bath Block

AS-02051-10

  J-200

96 x 0.2ml Microplate

AS-02031-01

MIX-A

0.2ml PCR Tube Holder

AS-02031-02

MIX-B

0.5ml Tube Holder

AS-02031-03

  MIX-C

1.5/2.0ml Tube Holder

AS-02031-04

  MIX-D

8 x 15ml Tube Holder

AS-02031-05

  MIX-E

3 x 50ml Tube Holder
