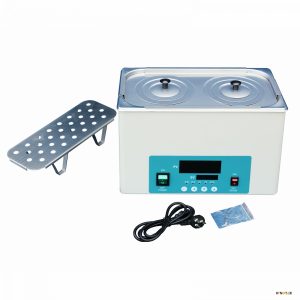

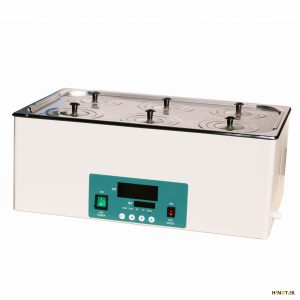

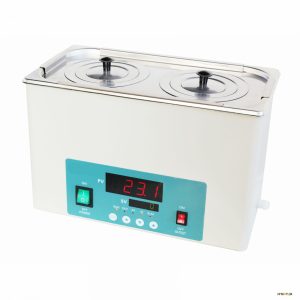

Thermostatic Water Baths (Stretching Inner Chamber)
Used for precision constant temperature and auxiliary.
Characteristics:
- Stainless steel stretching inner container and roof cover.
- Intelligent temperature controller with PID program, digital tube display and function of timing and over-temperature protection.
Main Technical Parameters:
| Classification Specifications | 1 hole | 1 row & 2 holes | 2 rows & 4 holes | 2 rows & 6 holes | |
| Model | DK-2000-IIIL | * | * | * | * |
| Heating Mode | Nature water convection heat transfer | ||||
|
Function
|
Temp. Range | RT+5 ∼ 100°C | |||
| Temp. Resolution Ratio | 0.1°C | ||||
| Temp. Motion | ± 0.5°C | ||||
| Temp. Uniformity | ± 1.0°C | ||||
|
Structure
|
Inner Chamber | Stainless steel | |||
| Outer Shell | Cold – rolled steel plate, resistance to chemical reagents coating on the surface | ||||
| Heater | Stainless steel heating tube | ||||
| Power Rating | 0.4kW | 0.5kW | 1.0kW | 1.5kW | |
|
Controller
|
Temp. Control Mode | PID (without DK-98-II) | |||
| Temp. Setting Mode | Touch button setting | ||||
| Temp. Display Mode | Measuring temperature displays on the three digital tubes upper row, set temperature displays on the lower row |
||||
| Timer | 0 ∼ 9999min ( with timing wait function ) | ||||
| Operation Function | Fixed temperature operation, timing function, auto stop. | ||||
| Program Mode | Optional | ||||
| Additional Function | Deviation Correction, menu key locked, power failure back-up, power-off memory | ||||
| Sensor | CU50 | ||||
| Safety Device | Over temperature alarm | ||||
|
Specification
|
Inner Chamber size(W*L*H)(mm) | 150*135*150 | 300*135*150 | 325*300*150 | 500*300*150 |
| Exterior size (W*L*H)(mm) | 170*154*210 | 318*2168*210 | 350*318*210 | 524*322*210 | |
| Packing size (W*L*H)(mm) | 240*230*280 | 390*240*280 | 420*390*280 | 600*390*280 | |
| Volume | 3.4L | 6.6L | 12.7L | 18.7L | |
| Load per rack | 5kg | ||||
| Shelf Number | 1 | ||||
| Power Supply (50/60Hz) Current rating | AC220V/1.8A | AC220V/2.3A | AC220V/4.5A | AC220V/6.8A | |
| NW/GW (kg) | 3.3/4 | 4.5/5 | 6/7 | 7.5/9 | |
