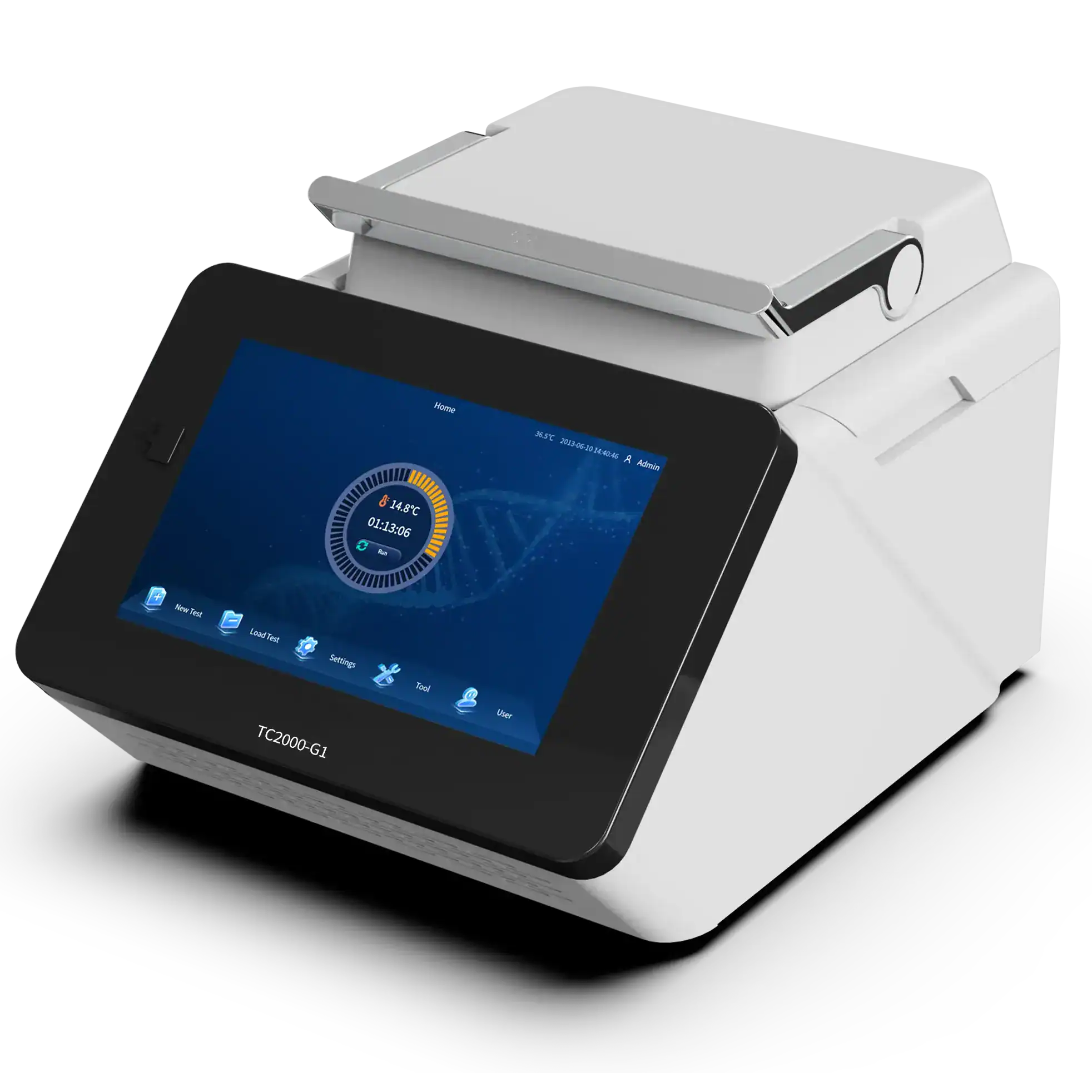

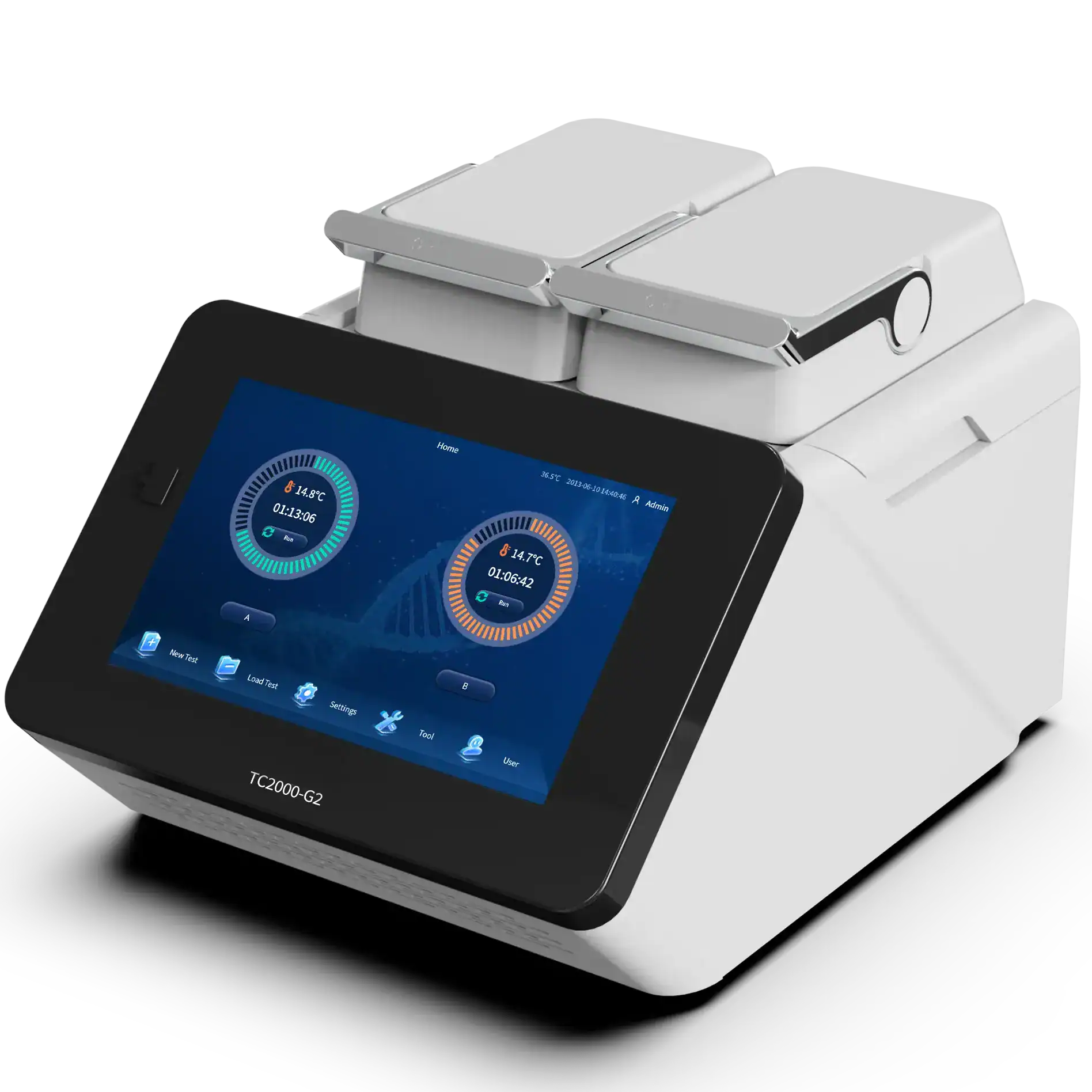

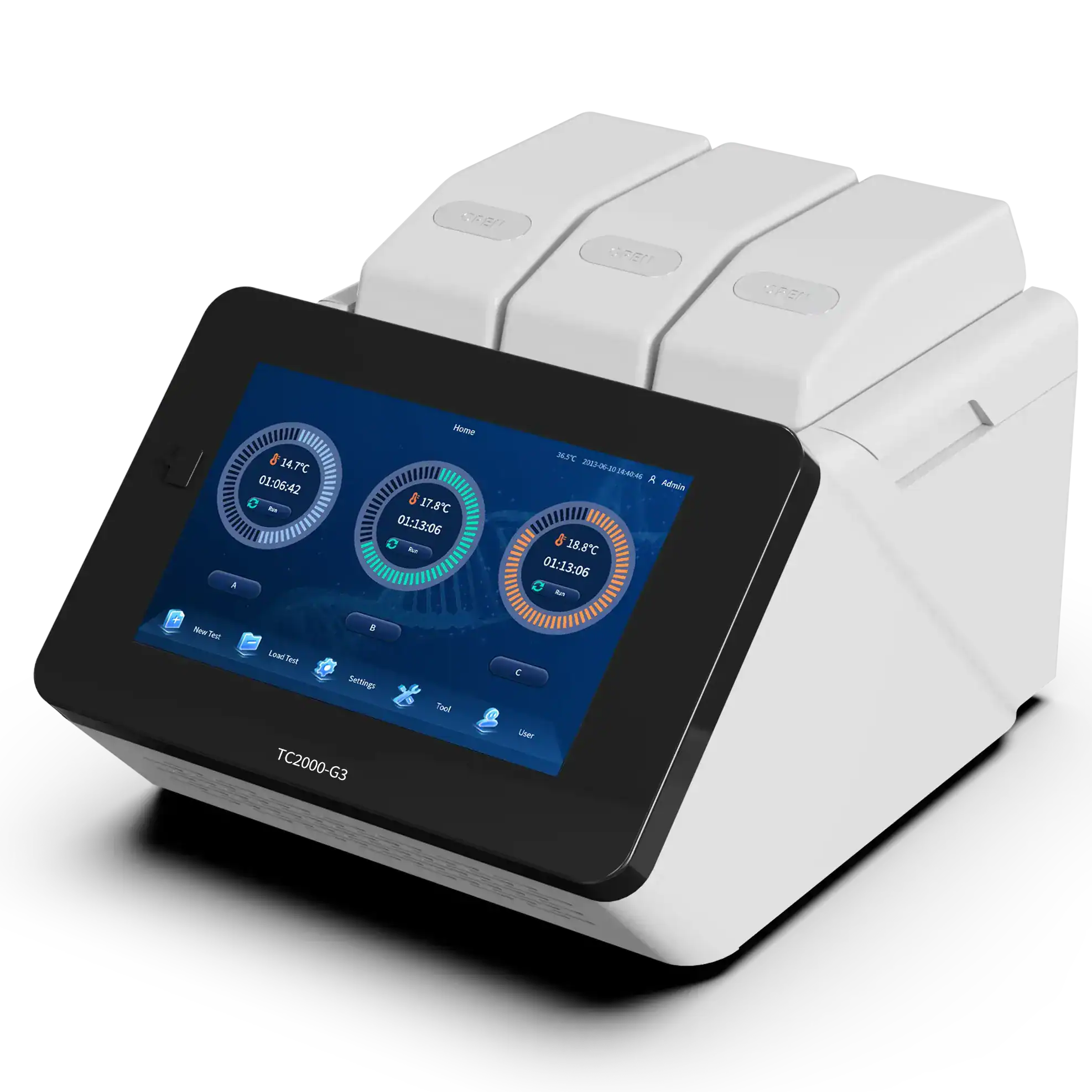

TC2000-G1 G2 G3 Thermal Cycler Gradient
Applications
Suitable for PCR, nucleic-acid amplification and related molecular-biology workflows.
Features
- 10.1-inch large screen new UI interface, divided into single-channel / dual-channel / three-channel, to meet different experimental requirements
- With advanced gradient temperature control technology, high-performance and long-lasting Peltier refrigeration and heating, which can achieve precise temperature control in zones.
- Multi-channel module design, can run several different PCR gradient programs at the same time, to achieve multi-purpose machine
- Self-adaptive pressure lever hot cap, close and tighten the cap in one step, can be adapted to different heights of test tubes
- Supports up to 199 cycles to perform the next operation, and runs a countdown disc to visually display the remaining time
- Edge temperature compensation technology for good temperature uniformity and gradient settings for easy optimisation of experimental conditions
- Real-time display of the running status of the programme, you can set the security account and password according to customer demand
- Automatic power failure protection, automatically execute unfinished cycles after power restoration to ensure the safe operation of the whole amplification process.
- Hot lid temperature and hot lid operating mode can be set to meet different experimental application requirements
- USB interface, support for U-disk storage/reading PCR data, support for U-disk software update, can be customised to meet the function of multiple file storage, support for Touch down PCR and Long PCR experiments
- Compatible with common 0.2mL PCR tubes, PCR-8Strips and 96-well PCR plates (no skirt, half skirt)
- Application
- TC2000-G1/G2/G3 is an indispensable laboratory instrument in the field of molecular biology, which can be used for gene sequencing, gene cloning, gene expression, mutation, and plays an important role in various fields such as agriculture, food testing, environmental science, drug development and so on.
- Medical Research
- Biological ResearchGenotyping, gene cloning, species identi﹚cation, evolutionary analyses, and other studies
- Forensic ScienceDNA analysis of crime scene samples to help identify suspects and provide a basis for public security case detection
- IFor pathogen detection, e.g. gene identi﹚cation of viruses, bacteria and fungi, mutation analysis of disease-associated genes, gene expression analysis in cancer research, etc.
- Agricultural sectorFor genetic research on crops and livestock, e.g. breed improvement, genetic disease detection, etc.
- Food testingDetection of pathogenic bacteria, genetically modi﹚ed ingredients in food, etc.
- Environmental ScienceAnalysing microbial communities in the environment and detecting genetic e﹙ects of pollutants on organisms
- Drug DevelopmentScreening of drug targets, assessment of drug e﹙ects on gene expression
- Genetic studiesConducting diagnosis and research on human genetic diseases
- PalaeontologyAnalyses species identi﹚cation and classi﹚cation, development and evolution, extinction event studies and the origin of species in ancient organisms
Specifications
| Specifications | TC2000-G1 | TC2000-G2 | TC2000-G3 |
|---|---|---|---|
| Sample Capacity | 96×0.2mL PCR tube 12×PCR-8strips 1×0.2mL 96-well PCR plate |
96×0.2mL PCR tube 12×PCR-8strips |
96×0.2mL PCR tube 12×PCR-8strips |
| Module | 1×96 | 2×48 | 3×32 |
| Sample module temperature control range [℃] |
0-105 | 0-105 | 0-105 |
| Hot lid temperature control range [℃] | 30-115 | 30-115 | 30-115 |
| Temperature display accuracy [℃] | 0.1 | 0.1 | 0.1 |
| Temperature control accuracy [℃] | ±0.1 | ±0.1 | ±0.1 |
| Temperature uniformity (at 55 ℃) [℃] | ±0.2 | ±0.2 | ±0.2 |
| Maximum rate of temperature change | 5℃/Sec | 5℃/Sec | 5℃/Sec |
| Gradient Temp Setting Range [℃] | 30-105 | 30-105 | 30-105 |
| Gradient span [℃] | 1-42℃, enter 0 to turn off the gradient |
1-25℃, enter 0 to turn off the gradient |
1-25℃, enter 0 to turn off the gradient |
| Temperature Control Method | Block/Tube | Block/Tube | Block/Tube |
| Material of the carrier module | Aluminum | Aluminum | Aluminum |
| Display | 10.1inches LCD 1280×800 | 10.1inches LCD 1280×800 | 10.1inches LCD 1280×800 |
| Input method | Touch panel | Touch panel | Touch panel |
| Power off protect | Yes | Yes | Yes |
| Skip to the next step | Yes | Yes | Yes |
| Communication Interface | USB，WIFI | USB，WIFI | USB，WIFI |
| Number of program storage | 20000+（USB FLASH） | 20000+（USB FLASH） | 20000+（USB FLASH） |
| User Defined File System | Up to 30 steps and 199 cycles in a single program |
Up to 30 steps and 199 cycles in a single program |
Up to 30 steps and 199 cycles in a single program |
| Power Supply | 100-240V,50/60HZ,600W | 100-240V,50/60HZ,1000W | 100-240V,50/60HZ,1500W |
| Dimensions [WxDxH] | 310×422×264mm | 310×422×264mm | 310×422×264mm |
| Weight | 11Kg | 11Kg | 11Kg |
| Permissible Ambient Temperature and Humidity |
5-40℃，80%RH | 5-40℃，80%RH | 5-40℃，80%RH |
Thermal Cycler GradientTC2000-G1/G2/G3
Optional Accessories
No optional accessories are specified in the source product catalog.
