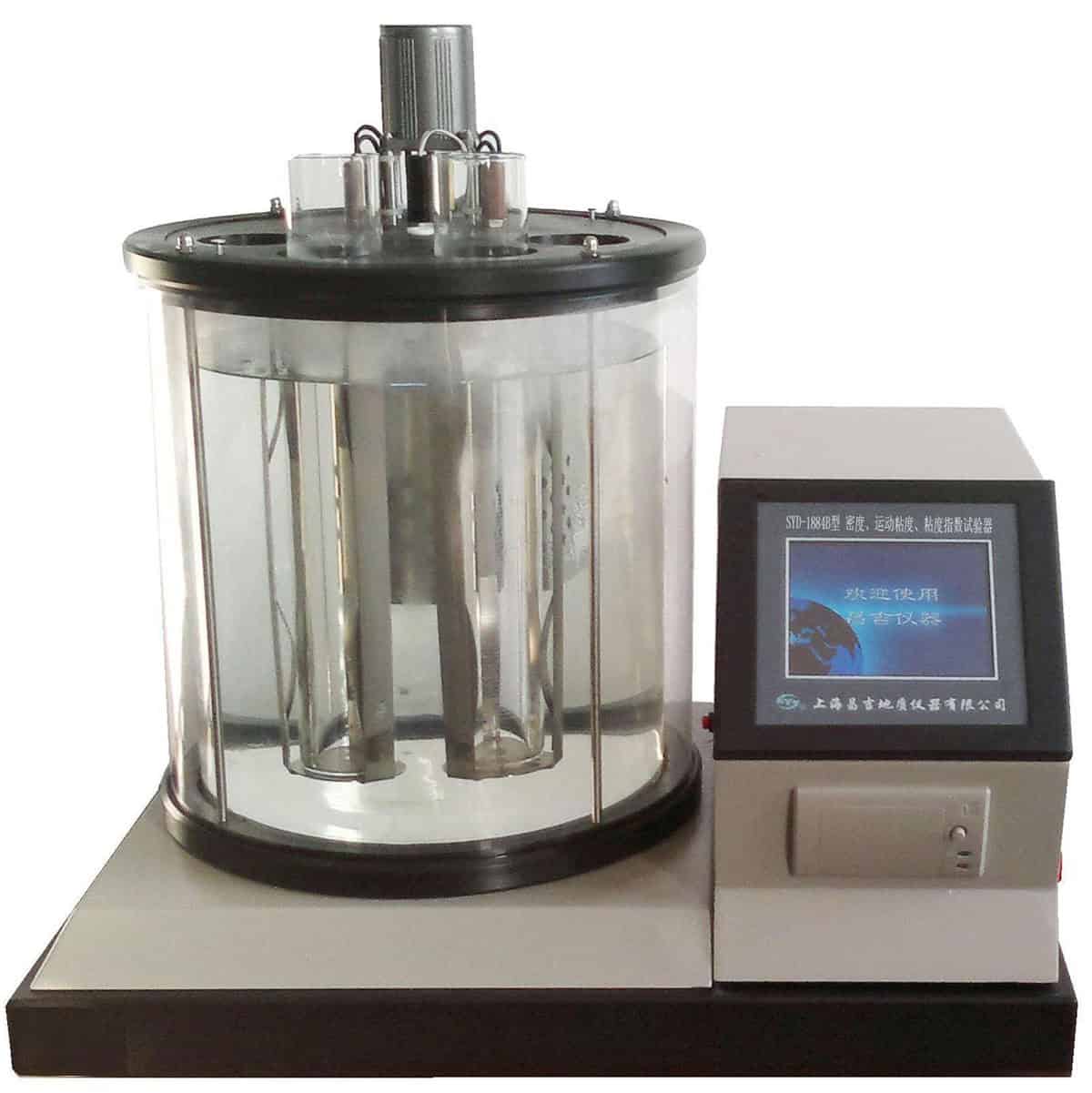

SYD-1884B Density, Kinematic Viscosity, Viscosity Index Tester

Summary

    This instrument is designed and made as per national standard of People’s Republic of China GB/T 1884, GB/T 265 and GB/T 1995. It can determine the density (liquid petroleum products) as per GB/T 1884, the kinematic viscosity (Newtonian liquids) as per GB/T 265 and viscosity index (Lubricating oils) as per GB/T 1995.

I. Main technical features
1. Multifunctional instrument. It can determine the density of crude oil and liquid petroleum products, kinematic viscosity of liquid petroleum products and a viscosity index of lubricating oils.
2. Microprocessor and colored LCD technology. Chinese-English bilingual menu. Light-touch screen. Easy to operate.
3. Advanced digital control and display. Automatic kinematic viscosity determination. The density test uses standard GB/T 1884.
4. It can test 4 samples at a time. Two for kinematic viscosity test and another two for density test. Or 4 kinematic viscosity tests. The parameters such as temperature, time, and coefficient of capillary viscometer tube and density value can be inputted in or displayed on the light-touch screen.
5. New-type temperature sensor. The temperature resolution is 0.01℃. Temperature control precision is ±0.05℃.
6. It can save 99 coefficients of the capillary viscometer.

II. Main technical specifications
1. Capacity of bath:Ф300mm×340mm
2. Temperature range: Ambient to 100℃
3. Resolution:0.01℃
4. Temperature precision: ±0.05℃
5. Timing precision: ±0.1s
6. Display:  5.6 inches colored LCD
7. Sample amount: 4 samples
8. Power supply: AC(220±10%)V, 50Hz±1Hz
9. Maximum power consumption: 1500W
10. Working environment:Ambient temp:(15~35)℃, RH<85%
11. Dimension:615㎜×500㎜×610㎜
12. Net weight: 26.5kg
