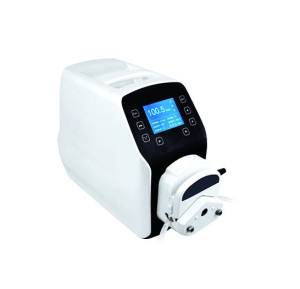

Standard peristaltic pump with ultra-quiet working performance. It is widely used in laboratory and complete analytical instruments.
Features:
* 3.2 LCD displays working parameters in real time
* Super silent drive setting, precise control, low vibration and low noise.
* Automatical temperature control system, reduce the noise of fan effectively.
* Load-shedding memory function, store parameters in time, safe and reliable.
* Circuit board spray with three paint, anti-dust, anti-moisture, anti-static, resist corrosion.
* Touch keyboard control, menu interface, convenient to set the parameters.
* Circuit board spray with three paint, anti-dust, anti-moisture, anti-static, resist corrosion.
* Timing function, the time range is 0.1s-9999 hours, can be used for simple dispemsing function.
* 0-360℃ back suctio angle setting, can avoid the l=fluid drop pff when transferring viscous fluid.
* Strong anti-jamming feature, wide voltage design, suitable for complex power supply environment.
* Nx-CIR circuit system, use import chips, computung speed fast , reliable performance, working stable.
* Support RS232/RS485 communication interface, MODBUS comunication protocol, meet different industrial request.
* Various external control functions, support 0-5V,0-10V,4-20mA analog signal control speed, has Nx-EMB-PGM programmable external control function.
| Model | SPP-LabN1 | SPP-LabN3 | SPP-LabN6 | |||||
| Drive | LabN1 | LabN3 | LabN6 | |||||
| Speed range | 0.1-150rpm | 0.1-350rpm | 0.1-600rpm | |||||
| Pump Head | YZ1515x | YZ2515x | MC1-MC12(10) | MC1-MC12(6) | YZ1515x | YZ2515x | YZ1515x | YZ2515x |
| Tubing Size | 13#,14#,
19#,16#, 25#,17#,18# |
15#, 24# | ID:0.13-3.17mm, | 13#,14#,
19#, 16#, 25#,17#, 18# |
15#, 24# | 13#,14#,
19#16#, 25#,17#, 18# |
15#,
24# |
|
| Wall thickness: 0.86-1.0mm | ||||||||
| Flow Rate
( mL/min) |
0.007~570 | 0.17~435 | 0.000067-32 | 0.00008-45 | 0.00
7~1330 |
0.17
~1035 |
0.007
~2280 |
0.17
~1740 |
| Flow RateRange | 0.000067-570ml/min | 0.007-1330ml/min | 0.007-2280ml/min | |||||
| SpeedRange | 0.1~600rpm | |||||||
| SpeedResolution | 0.1rpm | |||||||
| FlowRateAccuracy | <±0.5% | |||||||
| Outlet Pressure | 0.1Mpa(0.86~1.0mm wall thickness tubing)
0.1~0.27Mpa(1.6~2.4mm wall thickness tubing) |
|||||||
| Motor type | Stepper motor | |||||||
| Circuit System | Nx-CIR | |||||||
| Control method | Nx-EMB | |||||||
| Control Method | Touch keypad | |||||||
| Display | 4.3 inch-industrial grade-true color LCD screen | |||||||
| ExternalControl Speed Signal | 0-5V(standard), 0-10V, 4-20mA(optional) | |||||||
| Start/Stop
Direction Signal |
Passive switch signal, such as foot pedal switch
Active switch signal: 5V, 12V and 24V for option |
|||||||
| Communication Interface | RS232/RS485 support MODBUS protocol (RTU mode) | |||||||
| Ambinet Temperature | 0~40℃ | |||||||
| Relative Humidity | <80% | |||||||
| IPRate | IP31 | |||||||
| PowerSupply | AC110/220V±10%, 50/60Hz | |||||||
| Consumption | ＜50W | |||||||
| DriveExternalSize(L*W*H) | 216.4*157.3*230.7 | |||||||
