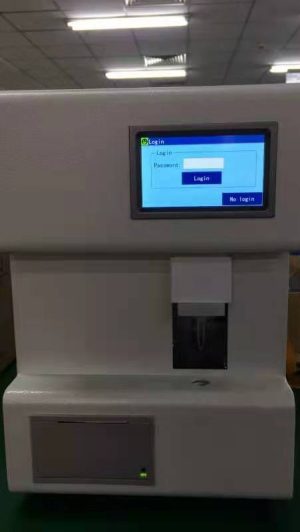

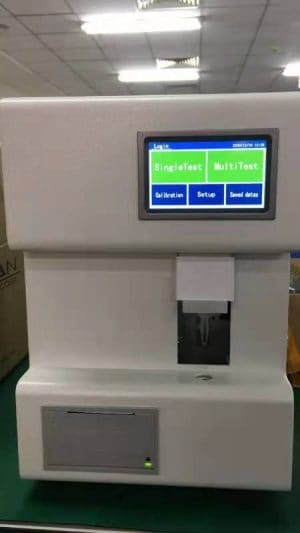

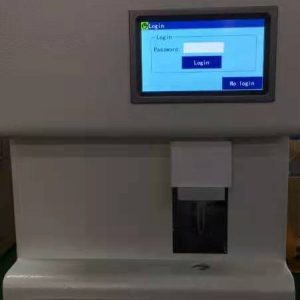

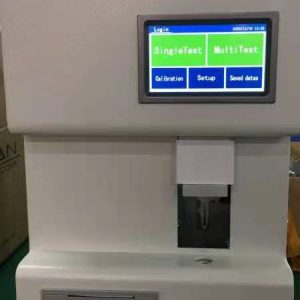

SMC-30D Osmometer
Feature:
* Color touch LCD screen, integrated fashion design, easy operation.
*On-screen display of molar concentration, freezing point, and osmolarity.
*With dual cooling system, the pre-cooling time is short, the detection speed is fast, and continuous detection is
convenient.
*The probe automatically moves up and down, which is convenient and quick.
*Less sample size, to meet the needs of different areas of testing.
*Calibrate any concentration of calibration solution to fit the measurement curve perfectly and ensure measurement
accuracy.
*The cooling system is designed with no heat transfer fluid to eliminate frequent maintenance.
*Built-in “Chinese Pharmacopoeia” hundreds of injection drug name, to facilitate the pre-specification of sample data.
*Microcomputer control, with automatic data processing and storage function, can choose multiple printing formats.
*With the authority management function to ensure data security, the computer and laboratory platform can be
connected via RS232 interface to achieve data sharing.
Spec:
| Measuring Range | 0~3000 mOsmol/kg H2O |
| Sample Quantity | 50μl (50μl~100μl) |
| Testing Time | < 1.5min |
| Pre-cooling Time | < 3min |
| Repeatability | RSD≤±1% (300 mOsmol/kg) |
| Accuracy | ±2 mOsmol /kg (≤400 mOsmol /kg) ±1% ( > 400 mOsmol /kg) |
| Resolution | 1 mOsmol /kg |
| Linearity | < 1 %line |
| Ambient Temperature | 10~30℃ |
| Environment Humidity | 5~80% |
| Power Supply | AC 220V±10%;50HZ;<80W |
| External Size (W*D*H) | 250×250×370mm |
