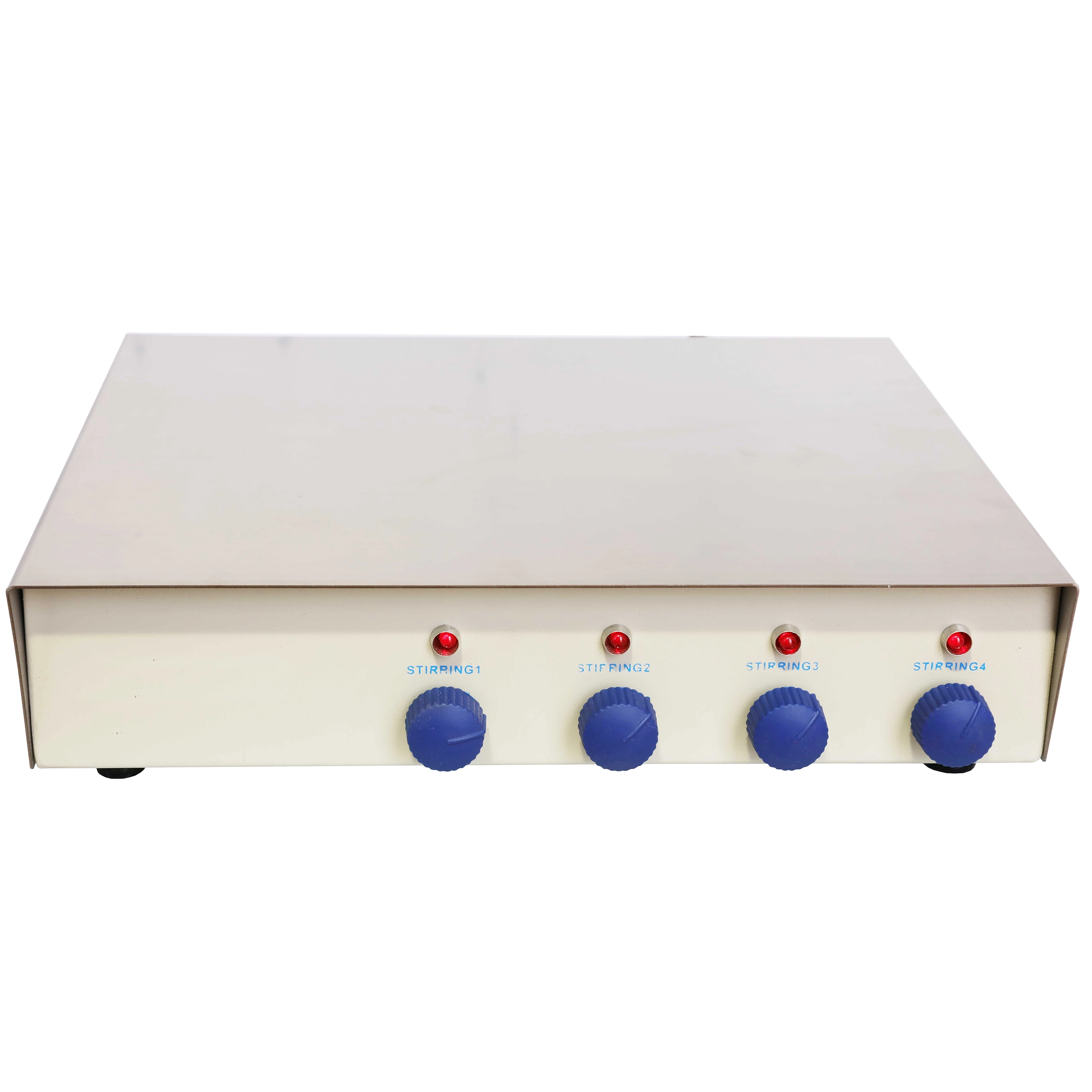

SH-6 Series Four-Position Magnetic Stirrer
Magnetic mixing equipment.
Characteristics
4 unit stainless hotplate can work together or separately.
Stirring speed is stepless adjusted.
Technical Specifications
Patent No.: ZL201530547467.3
| Model | SH-6 | SH-7 | |
|---|---|---|---|
| Function | Max. Volume (ml) | 1000ml*4 | 3000ml*4 |
| Speed (r.p.m) | 100 ~ 2000 | ||
| Working Time | Continuous | ||
| Minimum Resolution | 100 | ||
| Structure | Exterior | Cold plate spraying, stainless steel plate | |
| Driving Mode | Motor | ||
| Motor Power | 0.01kW | 0.02kW | |
| Controller | Continuous Operation | Yes | |
| Setting Mode | Scale | ||
| Speed Display Mode | Scale | ||
| Timer | No | ||
| Operation Function | No | ||
| Specification | Exterior Size (W*L*H)(mm) | 300 × 270 × 80 | 400 × 320 × 120 |
| Packing Size (W*L*H)(mm) | 340 × 310 × 110 | 440 × 360 × 150 | |
| Plate Size (mm) | 300 × 250 | 400 × 300 | |
| Plate Load | 5KG | 20KG | |
| Power supply (50/60Hz) Current Rating | 110 or 220V | ||
| NW/GW (kg) | 3/3.6 | 6/7 | |
