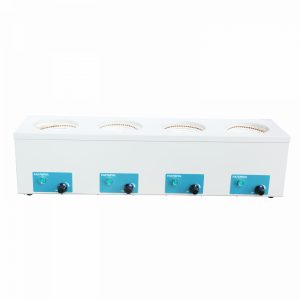

Several Rows Magnetic Stirring
Up to 450°C general heating stirring equipment.
Characteristics:
- 98-IV-B: Electronic temperature regulation heating mode.
- 98-V-B: Electronic temperature regulation heating mode, heating and stirring can proceed simultaneously; stepless speed adjustment.
- 98-V-B model without 100ml.
Main Technical Parameters:
Model | 98-IV-B/98-V-B | ||||||||||||
Function
|
Specification(ml) | 2 x 100 | 2 x 250 | 2 x 500 | 2 x 1000 | 4 x 100 | 4 x 250 | 4 x 500 | 4 x 1000 | 6 x 100 | 6 x 250 | 6 x 500 | 6 x 1000 |
Heating mode | Surface heat conduction | ||||||||||||
Surface Max. temperature | 450°C | ||||||||||||
Temp. range | R1+v1c20 – 250°C | ||||||||||||
Speed range | 98-IV-B no/98-V-B; 0 – 1600RPM | ||||||||||||
Structure
|
Heating element | Nickel chromium alloy wire | |||||||||||
Stir bar | 98-IV-B no/98-V-B; PTEF | ||||||||||||
Outer shell | Cold rolled steel plate, surface spraying | ||||||||||||
Motor power | 98-IV-B; no/98-V-B; 0.01kw | ||||||||||||
Heating power (KW ) | 2 x 0.1 | 2 x 0.15 | 2 x 0.25 | 2 x 0.35 | 4 x 0.1 | 4 x 0.15 | 4 x 0.25 | 4 x 0.35 | 6 x 0.1 | 6 x 0.15 | 6 x 0.25 | 6 x 0.35 | |
Controller | Work model | Continuous | |||||||||||
Specification
|
Exterior Size (mm) |
280*140* 106 |
320*160* 170 |
380*180* 180 |
420*210* 200 |
530*140* 160 |
610*160* 170 |
690*180* 180 |
810*210* 200 |
820*140* 160 |
940*160* 170 |
1060*180* 180 |
1240*210* 200 |
Packing size(mm) | 320*180* 190 |
360*190* 200 |
400*220* 210 |
570*180* 190 |
570*180* 190 |
650*190* 200 |
730*220* 210 |
850*250* 230 |
860*180* 190 |
980*190* 200 |
1100*220* 210 |
1280*250* 230 |
|
Voltage | 100 – 120V or 200 – 240V | 200 – 240V | |||||||||||
N.W.(kg) | 4 | 4 | 4 | 7 | 8 | 8 | 8 | 14 | 12 | 12 | 12 | 21 | |
G.W.(kg) | 5 | 5 | 5 | 8 | 10 | 10 | 10 | 16 | 15 | 15 | 15 | 24 |
