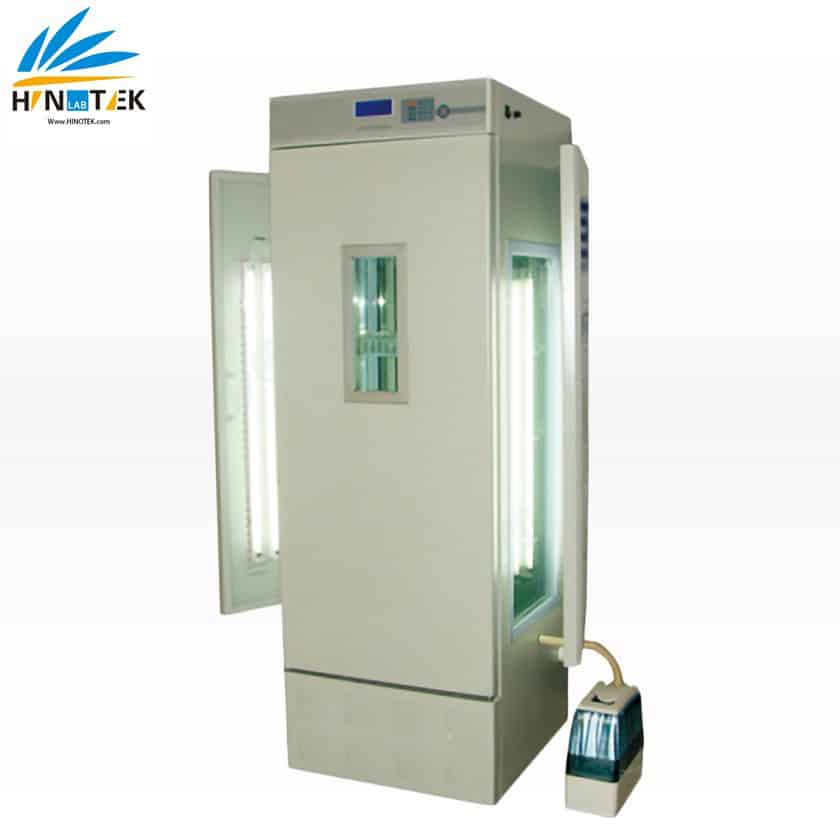

RTOP-500Y Artificial climate box

RTOP-500Y artificial climate box is cloud Top incubator artificial climate many agricultural products wherein a type and a volume of 500L, a thermostat device having a high precision hot and cold temperature and humidity control functions, can provide

Features of the artificial intelligence climate box:
1. Large-screen LCD display, Chinese guide operation process, simple operation, precise control, blue backlight, easy to view at night.
2. Mirror surface stainless steel liner is adopted, and the four corners are semi-circular arc transition. The partitions or partitions in the box can be removed without tools, which is convenient for disinfection and cleaning of the studio.
3. The program can be set to time, temperature, illuminance and other gradient control. Time period control 99-segment programming, each time period is 1-99 hours, and different segment parameters can be set to meet the different parameters of plant growth.
4. It has the function of over-temperature and sensor abnormal protection to ensure the safety of the instrument and the sample. The LED growth lamp is equipped with more uniform illumination and higher illumination, which is conducive to the growth of plants and improves disease resistance.
5. Intuitive display of Beijing time, remaining time of the period, light level, temperature in the box and ambient temperature. The inner tank is equipped with a temperature protection device, and the software and hardware automatically cut off the power when the temperature is higher than the inner tank protection temperature to protect the test sample.
6. With sterilization function, set the sterilization time, the sterilization function will be automatically closed when the sterilization time is over.
7. It has the functions of power-down memory and power-down time automatic compensation, and the original working state can be continued after the power is turned on again.
8. The incubator light source adopts LED light source suitable for plant growth, which has the advantages of low energy consumption and low heat, and the illuminance is adjustable in 3 levels.
9. A network port can be installed, and the network type can view the current working conditions of the cabinet and historical temperature and humidity operating data in real time on the WeChat and PC terminals, and the PC terminal can export historical data. (Optional)



Features of networked incubator:
1. Intelligent networked terminal, which can upload monitoring data in real time.
2. Support the coexistence of mobile terminal and web terminal to facilitate data viewing, analysis and management.
3. Real-time monitoring of equipment operation, abnormal alarm information can be pushed to the mobile terminal of the mobile phone in time.

Management cloud platform function (networked incubator)
1. The built-in instrument cloud management platform includes C/S architecture, which can summarize and analyze all online device data, and data backup is not lost. The viewing operation methods include web and mobile terminals ( Both Android and Apple systems are available).
2. Data can be uploaded to the management cloud platform. The data in the platform can be downloaded, analyzed, and printed.
3. The platform supports device data storage and provides sufficient capacity for long-term storage.
4. The platform provides report forms such as curves and tables for equipment data, and the data can be exported and imported.
5. The platform can combine data for report making, report printing, and report export functions.
6. The software can be upgraded online.

Temperature control range 0~50℃(without light), 10~50℃(with light)
Temperature fluctuation ±0.5℃
Temperature uniformity  ±1℃
Humidity control range 50%~90%RH
Humidity fluctuation ±7%RH
Temperature, Humidity  Illumination Programmable Number of Segments: LCD 1~99 Periods Fully Automatic
Illumination level 0~10 level
Illumination: 0~8000LUX (conventional) (about 300mol m-2s-1), higher illuminance can be customized;

(Type 1:0~12000LUX) (Type 2:0~22000LUX)

Life: 100,000 hours at room temperature Note: All incubators of our company can increase the light intensity according to user requirements
Optional networking mode the standard version uses RJ45 networking. If the network cable is inconvenient, you can purchase a WIFI module for networking.
