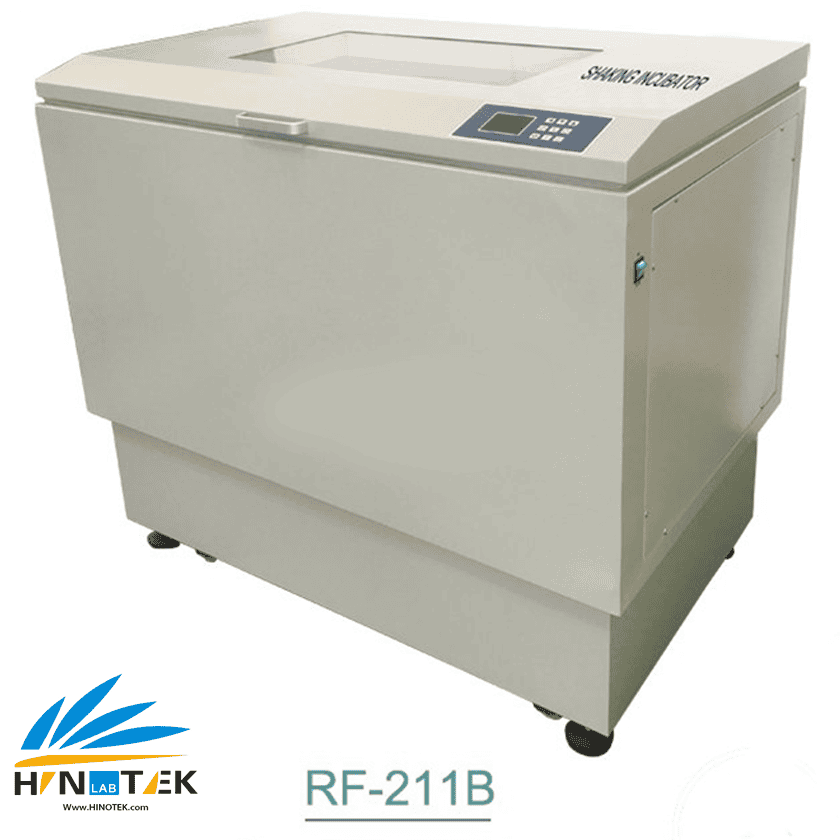

JZ_RF-211B CF-111

  • Three-dimensional self-balancing eccentric drive mechanism
  • Black and white pen section of liquid crystal display
  • Brushless motor control, long service life
  • Temperature is controlled by Microcomputer controlling
  • Temperature overshoot, faster stabilization time, better control precision etc.
  • Speed of the brushless motor control with high reliability
  • With module fault, motor stall, Holzer wrong, bus voltage under voltage, over voltage, communication fault alarm function
  • Optional RS485 communication
Model RF-211B CF-111
Max. capacity △250ml×40 or △500 ml×28or△1000ml×18 or △2000ml×8or △5000ml×6 △250ml×40 or △500 ml×28
or△1000ml×18 or △2000ml×8
or △5000ml×6
Tray size (mm) 900X480 900X480
Tray No. 1pc 1pc
Standard configuration 2000ml×8 2000ml×8
Temperature range  4℃~60℃ RT+5℃~60℃
Temperature fluctuation ±0.5℃ ±0.5℃
Heating power 350W 350W
Oscillation frequency 50~300 rpm 50~300 rpm
Frequency accuracy  ±1 rpm  ±1 rpm
Amplitude ∅ 30mm ∅ 30mm
Timer 0-9999min 0-9999min
Power 220V 50Hz 220V 50Hz
Dimension (mm) 1290x610x970 1290x610x970
Package (mm) 1380x710x1070 1380x710x1070
G.W./N.W. 220/180kg 200/160kg
SKU: N/A Category: Tag:
