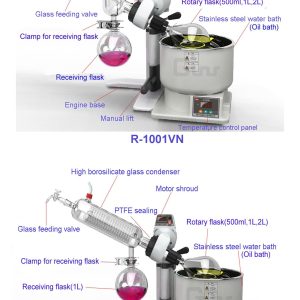

R-1001-VN mini rotary evaporator/ rotovap
The Introduction

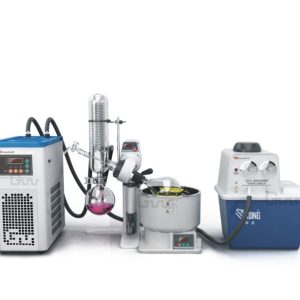

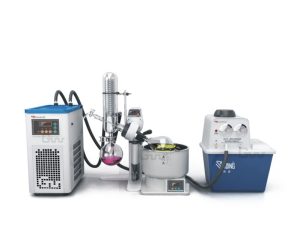

The equipment for purification distillation test rotates and shapes a thin film in negative pressure condition by heating, evaporates efficiently, and then condenses and recollects solvent to purify and separate. The products can be made into system devices with Multi-purpose Circulating Water Vacuum Pump, Diaphragm Vacuum Pump, Low Temperature Circulating(vacuum)Pump, Circulating Cooler, Constant Temperature Circulator, Low-Temperature Cooling Liquid Circulating Pump.
The Characteristics
1, Double sealing with Teflon (PTFE) and fluorous rubber to ensure high vacuum degree.
2, The air extraction nozzle of the condenser is set down, and it is safer after connection with vacuum pipe.
3, Building block design is easy to be extended.
4, Easy operation of lifting, move up and down smoothly and easy to lock.
5, Dedicated electric machinery, worm, and gear drive steadily.
6, Speed display, operate visually and easily.
7, The temperature adopts PID control, which ensures accurate temperature control.
8, The separation of bath and the mainframe makes configure flexible.
9, pump and cooler are optional.
The Technical Data of R 1001

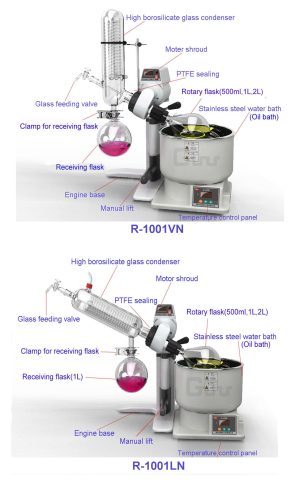

Model |
R-1001-VN |
R-1001-LN |
|
Ambient temperature(¡æ) |
5~35 |
||
Rotary speed(rpm) |
10~180 |
||
Evaporating speed(ml/min) |
20 |
||
Achievable vacuum(Pa) |
Below 3mmHg |
||
Temperature range(¡æ) |
Room temp~100 |
||
Temperature display |
Keypad input Digital display |
||
Speed-setting |
Knob setting, Digital display |
||
Power Supply (V/Hz) |
220/50 |
||
Rotary motor(W) |
25 |
||
Heater wattage(kW) |
1.5 |
||
Condensing tube | Type |
Vertical type water refrigerating |
Lean type water refrigerating |
Condenser(m2) |
0.12 |
||
Rotary bottle(L) |
0.5~2 |
||
Collecting bottle(L) |
1 |
||
Vacuum sealing |
Double sealing rings made of Teflon Vinton materials |
||
Water Bath size (mm) |
260*140 |
||
Water Bath volume(L) |
7.4 |
||
Function of lifting table |
Weight balancing Gliding elevating manual lifting |
||
Elevating stroke(mm) |
100 150 |
||
Dimensions(mm) |
560*320*660H |
750*320*540H |
|
Weight(kg) |
9.5 |
