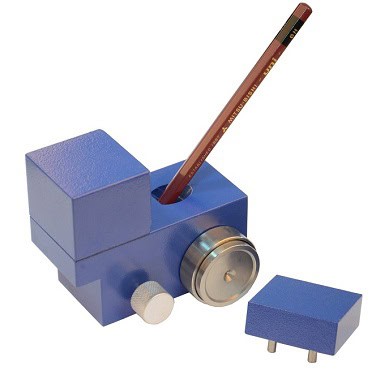

PS 2673 Pencil Hardness Tester with 3 Loadings

Pencil Hardness Tester

Pencil Hardness Tester with 3 Loadings

The purpose of pencil hardness tests is to determine the resistance of coating materials or lacquers to scratch effects on the surface.  This test is of particular value for furniture or vehicle lacquers, but is also a useful aid in the development of synthetic resins or other film forming materials.  Generally, scratch hardness is measured by moving a sharp object under a known pressure over the test surface.  The result may either be the value of the pressure required to scratch through the test material if a scratching tool of constant hardness is used, or the hardness of the scratching tool is varied while constant pressure is applied.

14 pencils (grade 6B to 6H) are used together.

Pencils are moved with a fixed pressure and a fixed angle.

Pencils can be easily exchanged during the test.


ISO 15184

ASTM D 3363

Technical Specifications

Cat. No. PS 2673
Pencil Loading 500 g
Loading Blocks 250 g & 500 g
Pencil Angle 45°
Pencil Set 6B-B-HB-F-H-6H
Dimensions 105 x 78 x 53 mm
Shipping Weight 5 kg

Comes complete with

Pencil Hardness Tester

Loading Block 250 g and 500 g

Complete set of 14 pencils from 6B-6H

Pencil Sharpener

Abrasive 400 grit paper

Application manual
