Catalog MS-H280-S4 MS-M-S4 MS-H280-S6 MS-M-S6 BJDL

MS-H280-S4/ MS-M-S4/ MS-H280-S6/ MS-M-S6

4/6 Channel LCD Digital Hotplate Magnetic Stirrer

Compatible with various heating blocks

Multiple work plates integrated into one space-saving instrument with small foot print, and good parallel and uniformity

Independently controlof start/stop, temperature, speed and display

Indicators manifest status of each channel

LCD display the runtime temperature and speed, or the settings

Features

• 4/6 channels with independently control of start/stop, temperature, speed and display for better parallel experiment control.
• Ceramic coating aluminum work plate with fast heat transmission and strong resistance to corrosion.
• Powerful, rapid heating with accurate PID temperature control
• Spark-free DC brushless motor with extended life and no maintenance
• Compatible with various heating block or reaction vessels for a variety of application scenario
• Ultra space-saving with 4/6 channel integrated in one instrument
• “HOT” warning flashes on the LCD display if the work plate temperature is above 50℃ after the user turn off the power switch.
• Two independent safety circuits keep monitoring the instrument. When overheating is detected and the sensor malfunctions, it will stop heating and sound alarm; When short circuit is detected, it will cut off the power to ensure the human safety.
• Reliable safety mechanism, compliant to IEC61010-1\UL61010-1\BSEN61010-1\CAN\CSA-C22.2NO.61010-1 and all other safety regulations of laboratory heating devices, competent with tasks without human surveillance.

Applications

The 4/6 channel hotplate magnetic stirrers are designed for parallel experiment and multiple parameter

optimization, thus can serve as handy tools for Kjeldahl nitrogen determination, Soxhlet extraction and parallel

synthesis, etc. They are ideal choices for test laboratories in food, animal feed, textile, soil, sewage, water

treatment, pharmaceutical, polymerization, petroleum products, resin and plastic sectors. The user can handle 4

or 6 tests at the same time with stable performance, good reproducibility, high accuracy and easy operation.

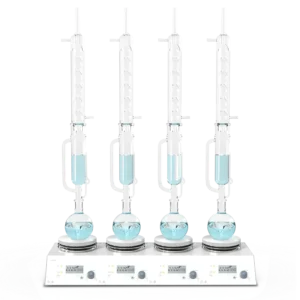

MS-H280-S4

MS-H280-S6

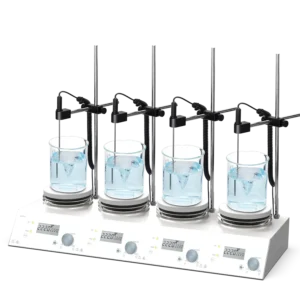

MS-M-S4

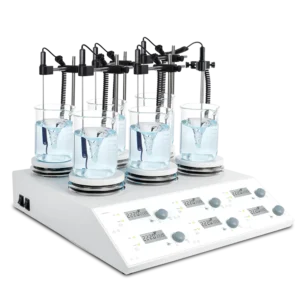

MS-M-S6

The design of 4/6 channel hotplate magnetic stirrers aim to turn your laboratory into a space-saving, safe, highly

efficient, tidy and neat benchmark among peers. They are well recognized by higher education, pharmaceutic

manufacturer, biotech company, research institute and food manufacturer as an eco-friendly magnetic stirrer

for synthesis.
