Main features

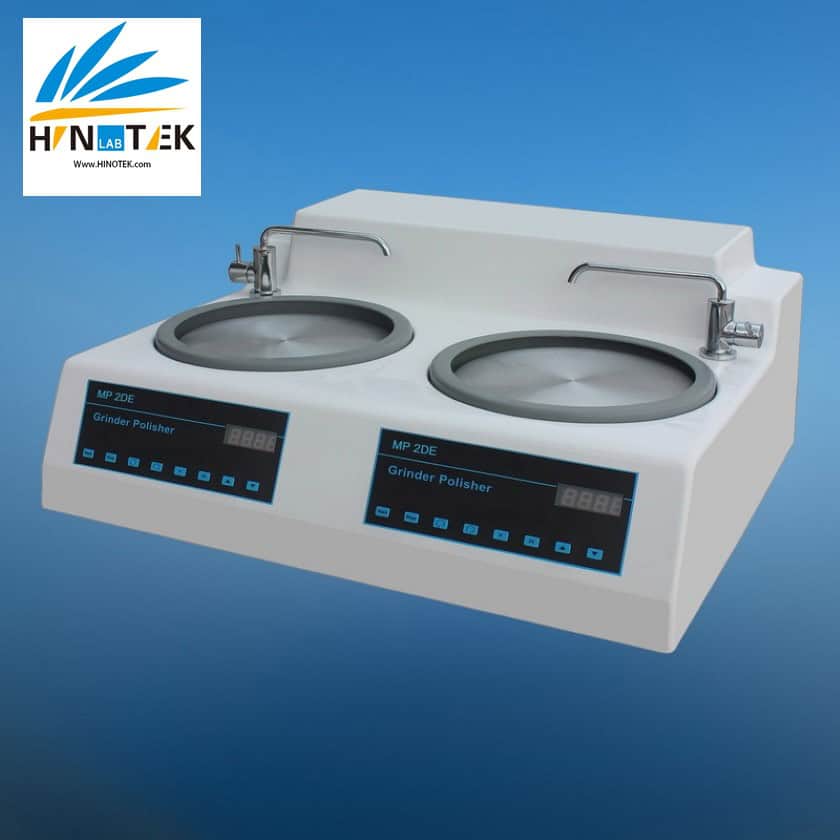

  • This model is the economical & practical instrument designed for metallographic specimen preparing. It can meet the demands of specimen preparing from customers very well.
  • This model is designed and manufactured as per international advanced specimen preparing technology.
  • Equipped with beautiful appearance machine shell and stainless steel parts which never rust.
  • Equipped with double motors & double working discs which feature independent controlling. The working disc can be changed and replaced swiftly.
  • CCW and CW rotating direction control
  • There are two optional types for MP 2DE: 200mm or 250mm working disc.
  • There are two working conditions for this model: the stepless speed changing status or two-level constant speed status. The working condition can be switched from one to another easily. Also the rotating direction of working disc can be chosen at will.

Technical specifications

Diameter of working disc: 200mm / 250mm
Rotating speed of working disc: 50-600 rpm (stepless speed changing),
and 150 / 300 rpm (two-level constant speed)
Power supply: Single phase, 220V, 50Hz
Dimensions: 70 x 60 x 28 cm
Net weight: 50 Kg
