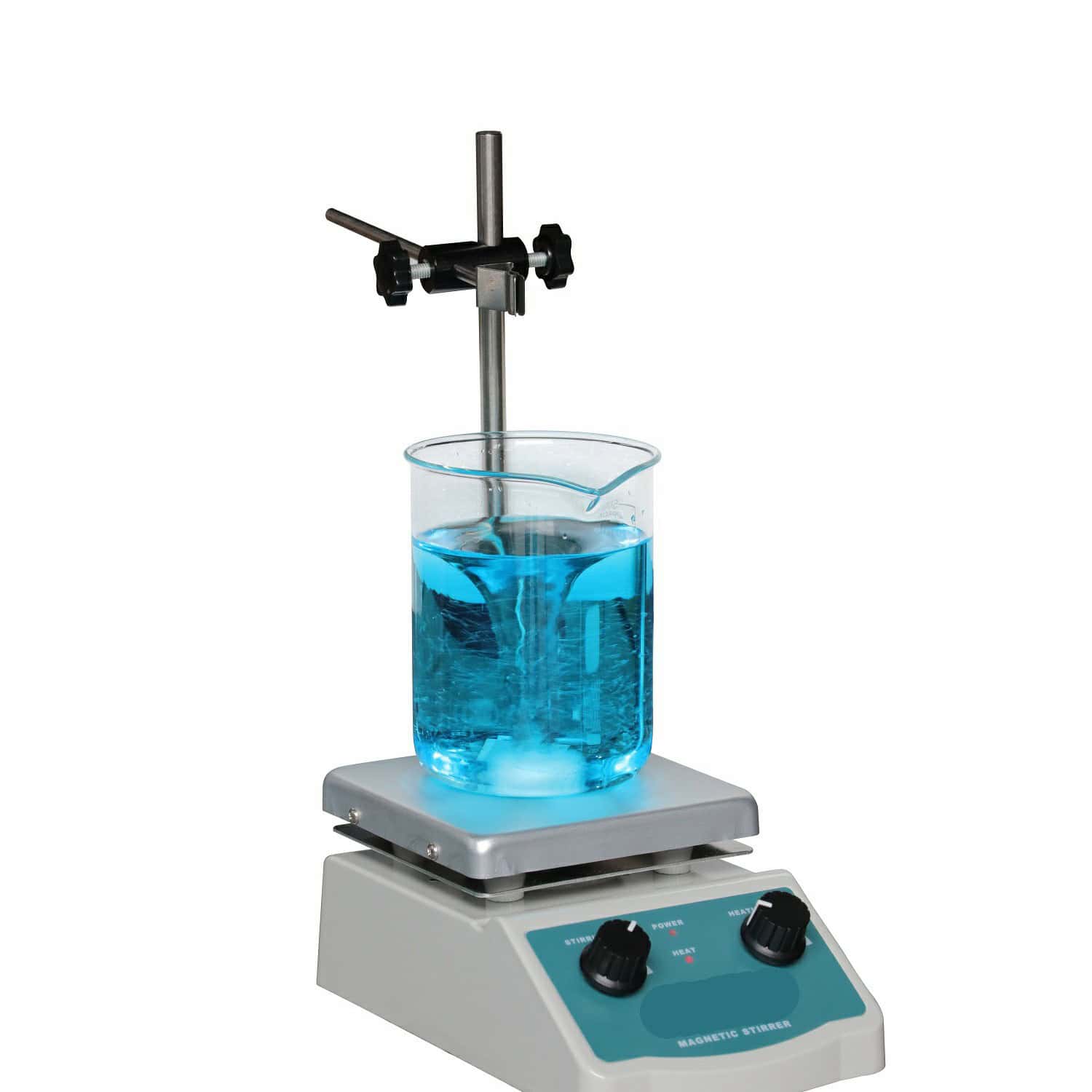

SH-2A Series Magnetic Stirrer
Magnetic mixing equipment with heating.
Characteristics
Heating power and stirring speed is stepless.
With adjustable thermometer rack, stainless steel rods and the stir bar.
SH-(C) series: Ceramic Coated Plate
SH-3D: Aluminium plate & Display controller
SH-3D(C): Ceramic Coated Plate&Display controller
Technical Specifications
Patent No. : ZL 2018 3 0095053.5
| Model | SH-2A | SH-2B | SH-2 | SH-3A | SH-3B | SH-3D | SH-3 | |
|---|---|---|---|---|---|---|---|---|
| SH-2A (C) | SH-2B (C) | SH-2 (C) | SH-3A (C) | SH-3B (C) | SH-3D (C) | SH-3 (C) | ||
| Function | Max. Volume (ml) | – | 2000 | 2000 | – | 5000 | 5000 | 5000 |
| Speed (r.p.m) | – | 100~2000 | – | 100~2000 | ||||
| Working Time | Continuous | |||||||
| Minimum Revolution (r.p.m) | – | 100 | 100 | – | 100 | 100 | 100 | |
| Max.Temp. (°C) | 380 | – | 300 ± 10% | 380 | – | 380 | 380 | |
| Structure | Exterior | Cast aluminium, Surface spraying / Ceramic Coated | ||||||
| Plate Size(mm) | 120 × 120 | 170 × 170 | ||||||
| Driving Mode | – | Motor | – | Motor | ||||
| Motor Power (W) | – | 10 | – | 20 | ||||
| Heating Power(kW) | 0.18 | – | 0.18 | 0.5 | – | 0.5 | 0.5 | |
| Stir Bar | – | PTFE | – | PTFE | ||||
| Controller | Continuous Operation | Yes | ||||||
| Setting Mode | Scale | |||||||
| Speed Display Mode | – | Scale | – | Scale | ||||
| Timer | No | |||||||
| Operation Function | No | |||||||
| Temp. Sensor | No | Yes | No | |||||
| Specification | Exterior Size (W*L*H)(mm) | 200 × 120 × 90 | 265 × 185 × 190 | |||||
| Packing Size (W*L*H)(mm) | 250 × 180 × 120 | 280 × 210 × 220 | ||||||
| Plate Size (mm) | 120 × 120 | 170 × 170 | ||||||
| Plate Load | 3KG | 10KG | ||||||
| Power Supply (50/60Hz) | 110V or 220V | |||||||
| Current Rating | ||||||||
| NW/GW (kg) | 1.9/3 | 1.9/3 | 1.9/3 | 2.2/3.4 | 2.2/3.4 | 2.2/3.4 | 2.2/3.4 | |
