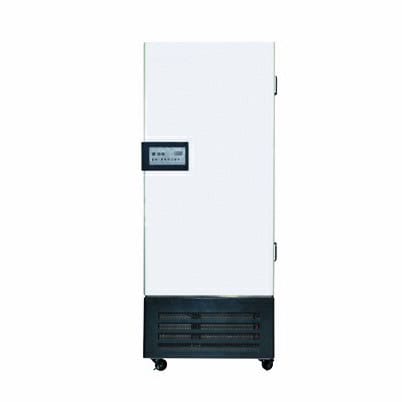

BJPX-L Series

Lighting Incubator


* Microprocessor PID control, accurate and stable.

* Magnetic door sealing.

* LED display for BJPX-L series, LCD display for BJPX-LII series.

* CFC-free refrigerant, eco-friendly and highly efficient.

Safety function:

* Over temperature protection.

* Temperature sensor for open circuit or short circuit protection.

* Parameters can be saved automatically when power off or system error.

Notice: Please don’t ues in low temperature (≤20°C) for long time (≥160h).

Technical Parameters:

Model BJPX-L150 BJPX-L250 BJPX-L300 BJPX-L400
Capacity 150L 250L 300L 400L
Lighting Type 2-side illumination
Temp. Range With illumination: 10~50 °C,    Without illumination: 5~50 °C,
Temp. Fluctuation ±1.5°C
Temp. Uniformity ±2°C
Lighting Illumination 0~6000 Lux   (6 degree adjustable)
Ambient Temp. 5~35°C
Continuous Working Time ≥180h
Refrigerant R134a (CFC free, eco-friendly)
Shelves 3 pcs/adjustable
Consumption 1000W 1500W 2000W 2500W
Power Supply AC220V ±10% 50Hz
Internal Size (W*D*H)mm 420*420*930 470*460*1180 490*475*1280 560*600*1200
External Size(W*D*H)mm 730*580*1570 665*765*1820 685*780*1920 755*905*1840
Packing Size(W*D*H)mm 860*710*1740 890*770*1990 900*790*2100 1050*870*2040
Gross Weight(kg) 148 158 178 200
