LBI-175-N Series Cooling Incubator(Fluorine free)
Features:
★ Imported compressor, automatic control for hot and cold.

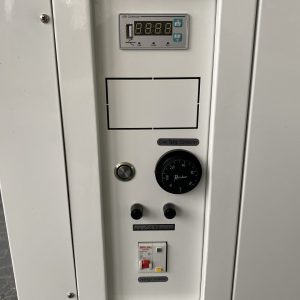

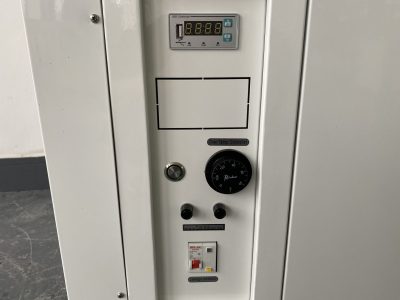

★Microprocessor control with large LCD screen, easy operation and high precision.
★ Polished stainless steel chamber,moveable shelves can be freely adjusted, easy for cleaning.
★Equipped with power supply outlet and lamp inside,easy observation.
★Double door design, the inner door is made of tempered glass for easy observation,magnetic sealing design for outer door, good sealing.
★ External printer records temperature and time data in real time.
★ Equipped with leakage protection.
★Equipped with spare temperature control which ensures the product work normally even the main temperature control failed(for heating).
Options:
RS485/232 connector
Spec:
| Model | LBI-175-N | LBI-275-N | LBI-375-N | LBI-475-N | LBI-800-N | LBI-1075-N | LBI-1075D-N | LBI-1675D-N |
| Chamber Volume | 175L | 275L | 375L | 475L | 800L | 1075L | 1075 | 1675 |
| Temperature Range | -10~75 ℃ | |||||||
| Display Resolution | 0.1℃ | |||||||
| Temperature Stability | ±0.5℃ | |||||||
| Temperature Uniformity | ±1℃ | |||||||
| Timing Range | 0~99h59min | |||||||
| Power Rating | 300W | 350W | 450W | 500W | 800W | 1000W | 2300 | 2800 |
| Refrigerant | R134a | |||||||
| Power Supply | AC 220V±10%，50Hz±2% | |||||||
| Continuous Operation | Long continuous operation | |||||||
| Exterior Size(W×D×H)cm | 61×62×150 | 74×71×157 | 75×75×173 | 86×75×182 | 113×93×198 | 101×90×224 | 141.8×95.1×195 | 162.5×122×204 |
| Chamber Size(W×D×H)cm | 45×42×93 | 58×51×93.5 | 59×55×116 | 70×55×125 | 96.5×61×137 | 95×70×160 | 126×67×127.5 | 146×85×135 |
| Shelf(Std/Max) | 3/8 | 3/8 | 3/10 | 3/12 | 3/13 | 3/14 | 6/18(3 pcs/side) | 6/20((3 pcs/side) |
Performance parameters are tested under non-load conditions: ambient temperature is 20°C, relative humidity is 50% RH
