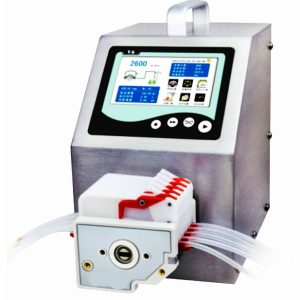

FPP-Lab V/ V Series

Intelligent Flow Rate Peristaltic Pump

* Timing start and stop function

* Fixed time and volume function

* Fixed volumen measurement function

* 304 stainless steel housing, resist corrosion, no rust.(FPP-V series)

*Online micro adjusting function: adjust the flow rate without stop the pump.

* Fast fluid-filled function, can wash the tubing and also fill fluid in the tubing.

* ABS engineering plastic housing, resist corrosion, no rust(FPP-Lab V series)

  1. 4.3 inch color LCD display, touch screen control, dynamic display working status, display the flow volume and motor speed in the same screen.
  2. Intelligent calibration function, it can calibrate the flow rate and dispensing volume, ensure the flow accuracy, suitable for high accuracy transferring liquid.
  3. On-line micro adjust function, it can adjust the flow rate during production progress, to avoid the filling errors because of tubing fatigue and elasticity decreased.
  4. Accurate angle control technology, to meet high precision metering and dispensing.
  5. Fixed volume measurement function: After turn on this function, the peristaltic pump will measure the liquid volume automatically, it will stop automatically after the volume reaches the set value. During this process, the flow rate can be changed. It is suitable for laboratory liquid dosing and chemical reaction process.
  6. Fixed time and volume function: After turn on this function, the peristaltic pump will transfer preset volume within preset time. It is suitable for liquid dispensing in laboratory and industrial production.
  7. Timer start and stop function: Can set the pump start and stop time freely, reach automation control.
  8. Load-shedding memory function, store the running parameters in time, safe and reliable.
  9. Fast fluid-filled function, can wash the tubing and also fill fluid in the tubing.
  10. High torque and low power loss, it can load several pump heads or multichannel pump head, meet different application requests.
  11. 3 measurement modes: fixed volume measurements, fixed time and volume, timer start and stop.

Technical Parameters:

Model FPP-LabV/ FPP-V1 FPP-LabV3/FPP-V3 FPP-LabV6/FPP-V6
Drive LabV1/V1 LabV3/V3 LabV6/V6
Speed range 0.1-150rpm 0.1-350rpm 0.1-600rpm
Pump Head YZ1515x YZ2515x MC1-MC12(10) MC1-MC12(6) YZ1515x YZ2515x YZ1515x YZ2515x
Tubing Size 13#,14#.

19#,16#.

25#,17#, 18#

15#,

24#

ID:0.13-3.17mm, 13#,14#,

19#,16#,

25#,17#, 18#

15#, 24# 13#,14#,

19#,16#,

25#,17#, 18#

15#, 24#
ID:0.13~3,17

Wall thickness:

0.8-1.0mm

Flow Rate

( mL/min)

0.007~570 0.17~435 0.000166-49(suggest working rotating speed less than 150 rpm) 0.000185-65(suggest working rotating speed less than 150 rpm) 0.007~1330 0.17~1035 0.007~2280 0.17~1740
Flow rate

range

0.000067-570ml/min 0.007-1330ml/min 0.007-2280ml/min
SpeedRange 1~600rmp
SpeedResolution 0.01 rpm
FlowRateAccuracy <±0.5%
BackSuction

Angle

0-360℃
Output

Pressure

0.1Mpa(0.86-1.0mm wall thickness tubing)

0.1~0.27Mpa(1.6-2.0mm wall thickness tubing)

MotorType Stepper motor
Circuit System FPP-LabV series: LabV-CIR; FPP-V series: V-CIR;
Control System N-EMB FPP-LabVseries: LabV-EMB;FPP-V series:V-EMB
ControlMethod Touch screen andmembrancekeypad
Display 4.3 inch-industrial grade-true color LCD screen
ExternalControl Speed Signal 0-5V, 0-10V, 4-20mA foroption
Start/Stop

direction Singal

Passive switch signal, such as : foot pedal switch

Active switch signal: 5V, 12V, 24V for option

Communication

Interface

RS232, RS485 support MODBUS protocol (RTU mode)
Ambinet Temperature 0~40℃
RelativeHumidity <80%
IPRate IP31
Power Supply AC110/220V±10%, 50/60Hz
Consumption <50W
DriveExternalSize(L*W*H)mm FPP-LabV series: 216.4*157.3*236.9;

FPP-V series: 219.4*152*243





SKU: FPP-LabV/ FPP-V1 Categories: , Tag:
