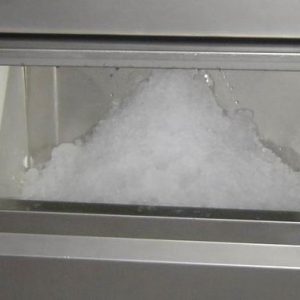

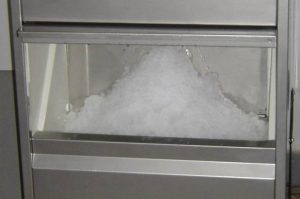

IMS series Ice Maker
* Use the imported Speed Reducer from Haitec in Italy and Motor from GGM in Korean.
* Evaporator are made of Copper.
* Compact design , Luxurious appearance.
* Full automatic running and easy to use.
* A power-overloading protecting device, water shortage auto-detecting, system and ice storage full control device.
* High efficiency CFC free compressor, economical and low energy consumption.
Spec:
| Model |
IMS-20
|
IMS-30
|
IMS-40
|
IMS-50
|
IMS-70
|
IMS-85
|
| Ice making capacity |
20kg
|
30kg
|
40kg
|
50kg
|
70kg
|
85kg
|
| Product size |
300*493*547mm
|
300*493*547mm
|
380*543*722mm
|
380*543*722mm
|
548*611*883mm
|
548*611*883mm
|
| Packing size |
377*571*595mm
|
377*571*595mm
|
457*621*770mm
|
457*621*770mm
|
625*690*932mm
|
625*690*932mm
|
| weight |
32kg
|
32kg
|
40kg
|
40kg
|
57kg
|
57kg
|
| capacity per day |
20kg/day
|
30kg/day
|
40kg/day
|
50kg/day
|
70kg/day
|
85kg/day
|
| power |
220V/50HZ
|
220V/50HZ
|
220V/50HZ
|
220V/50HZ
|
220V/50HZ
|
220V/50HZ
|
| cooling |
R134a
|
R134a
|
R134a
|
R134a
|
R134a
|
R134a
|
| ice storage quanity |
10kg
|
10kg
|
15kg
|
15kg
|
25kg
|
25kg
|
| doors |
1
|
1
|
1
|
1
|
1
|
1
|
| production per hour |
0.83kg
|
1.25kg
|
1.66kg
|
2.08kg
|
2.92kg
|
3.54kg
|
| ideal operating temp. |
15Deg.C
|
15Deg.C
|
15Deg.C
|
15Deg.C
|
15Deg.C
|
15Deg.C
|
| consumption |
180w
|
180w
|
280w
|
280w
|
420w
|
420w
|
| Model |
IMS-100
|
IMS-130
|
IMS-150
|
IMS-200
|
| Ice making capacity |
100kg
|
130kg
|
150kg
|
200kg
|
| Product size |
548*611*883mm
|
635*611*945mm
|
635*611*945mm
|
680*641*1102mm
|
| Packing size |
625*690*932mm
|
712*690*994mm
|
712*690*994mm
|
757*720*1150mm
|
| weight |
58kg
|
70kg
|
70kg
|
85kg
|
| capacity per day |
100kg/day
|
130kg/day
|
150kg/day
|
200kg/day
|
| power |
220V/50HZ
|
220V/50HZ
|
220V/50HZ
|
220V/50HZ
|
| cooling |
R134a
|
R134a
|
R134a
|
R134a
|
| ice storage quanity |
25kg
|
35kg
|
35kg
|
55kg
|
| doors |
1
|
1
|
1
|
1
|
| production per hour |
4.2kg
|
5.4kg
|
6.25kg
|
8.33kg
|
| ideal operating temp. |
15Deg.C
|
15Deg.C
|
15Deg.C
|
15Deg.C
|
| consumption |
420w
|
685w
|
685w
|
805w
|
