Electronic Thermostatic Water bath
Usage and Features: Electric thermostatic water-bath boil and water tank adopt the imported quality stainless steel plate and are manufactured by precision machining process with features of resistant to high temperature and resistant to corrosion. The temperature control device adopts the stability operation amplifier and double integral high-precision A/D conversion technology: infrared heating technology. With magnetic mixing, its thermal balance time is short, the temperature variation is small, evenness is good and the LED display is accurate and obvious.
This product applies extensively into distill, dry, condense and warm-soil the chemical drugs or biological products.
Spec:
|
Size and Model |
HH-S1 |

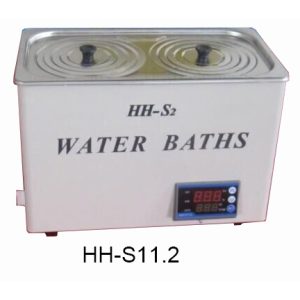

HH-S11.2 |
HH-S11.4 |
HH-S11.6 |

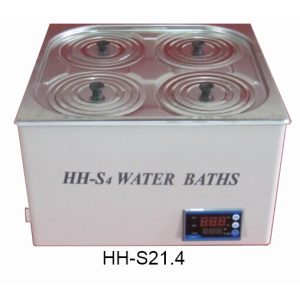

HH-S21.4 |

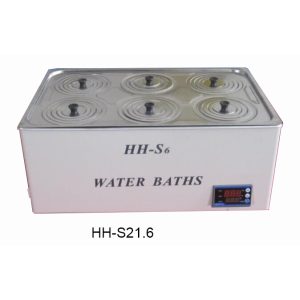

HH-S21.6 |

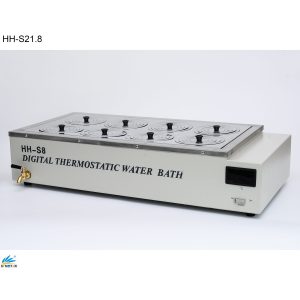

HH-S21.8 |
|
Name |
Thermostatic Water-bath Boiler |
||||||
|
Type |
Single |
Single |
Single |
Single |
Double |
Double |
Double |
|
Power Supply |
220V 50-60HZ |
||||||
|
Heating Power |
300W |
500W |
1200W |
1800W |
1200W |
1800W |
1800W |
|
Range of Temperature Control |
RT-100 °C |
||||||
|
Water Temperature Variation |
≤0.5°C | ||||||
|
Temperature Control Accuracy |
≤0.5°C | ||||||
|
Working Volume cm3 |
18*18*12 |
30*18*12 |
60*18*12 |
90*18*12 |
32*32*12 |
46*32*12 |
62*32*12 |
|
Working Volume |
3.8L |
6.48L
|
12.96L
|
19.44L
|
12.29L
|
17.66L
|
23.8L
|
|

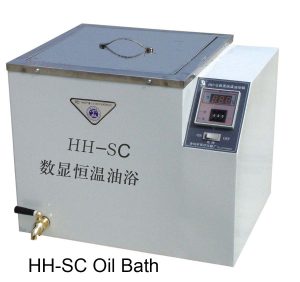

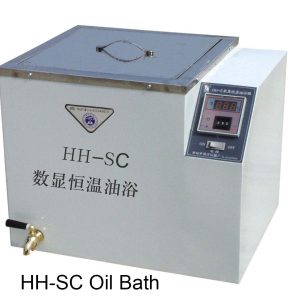

Size and Model |
HH-S |
HH-SC |
|
Name |
Thermostatic Oil-bath Boiler |
|
|
Heating Power |
2000W |
|
|
Range of Temperature Control |
RT-300°C, LED display |
Control Temperature: RT-300 °C, with the circuit system, High Accuracy |
|

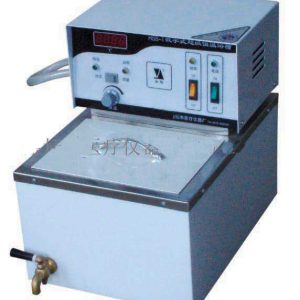

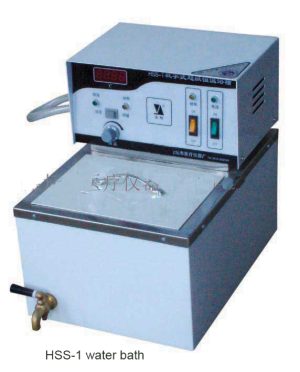

Size and Model |
HSS-1 |
601
|
|
Name |
Super Thermostatic Water-bath (Digital Super Thermostatic Water Tank) |
|
|
Range of Temperature Control |
RT-95 °C |
|
|
Water Temperature Variation |
||
| Working room dimension |
220mm*160mm*160mm
|
280mm*200mm*185mm
|
|
Circulate System |
Stainless Steel Circulator |
|
|
Size and Model
|
HH-W420
|
HH-W600
|
| Name |
Digital Display Three-purpose Thermostatic Water Tank
|
|
| Type |
2 Holes
|
6 Holes
|
| Heating Power |
800W
|
1500W
|
| Temp Control Range |
RT-100 °C
|
|
| Working Chamber |
42*18*18cm
|
60*30*18cm
|
HH-S series will use new blue plastic ring (old type material is stainless steels) as below picture:
