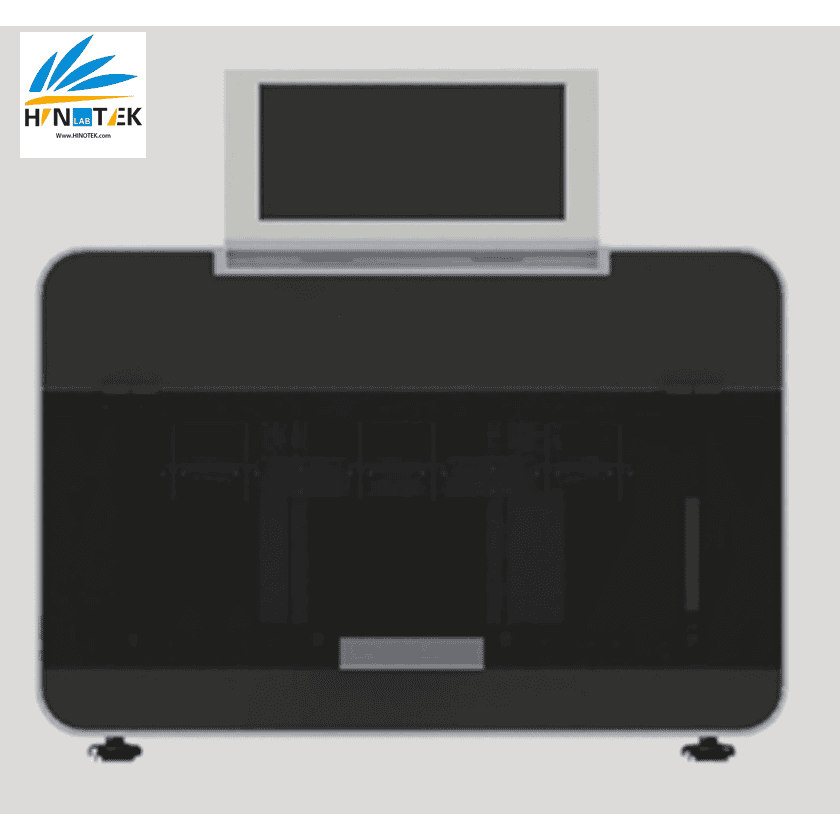

H48 Nucleid Acid Automatic Extraction System

Wavelength Range: 320~1000nm
Band Width: 2nm
Wavelength Accuracy: ±0.5nm

The fully automatic nucleic acid extractor

based on the principle of magnetic bead extraction and purification of nucleic acids, adopts an oscillating nucleic acid extraction and purification method to achieve rapid and efficient preparation and purification of a large number of sample nucleic acids.

With corresponding nucleic acid extraction reagents, it can process serum, plasma, whole blood, swabs, amniotic fluid, feces, tissue lavage, tissue, paraffin sections, bacteria, fungi and other sample types. It is widely used in inspection, disease prevention and control. , Animal quarantine, entry-exit inspection and quarantine, food safety, forensic trace inspection, science, teaching and research, etc.

The extracted high-quality nucleic acids (DNA and RNA) can be used for highly sensitive downstream analysis, such as quantitative PCR, clinical molecular diagnosis, gene expression analysis, gene analysis, forensic and infectious disease research, etc.; the purified nucleic acid can be directly applied The next step of enzyme digestion, identification, disease diagnosis and treatment, etc.


Samples per Batch 1-48 samples
Block formats 96 wells (50-1000pL)
Sample Volume 30pL-1000/L
Heating Temperature Room Temperature to 80 °C (Cell Lysis & nucleic acid Elution)
Processing mode Multi-speed Available
Operating Interface English-Chinese, 10 inch touch screen
Reagents Reagents suitable for magnetic particle method
Protocol management Free setup, can store up to 200 users’setups
Sterilization method UV sterilization (Programmable)
