Product Details
FP6450 flame photometer is a newly designed instrument. It has the advantages of small size, convenient operation, stability and reliability.

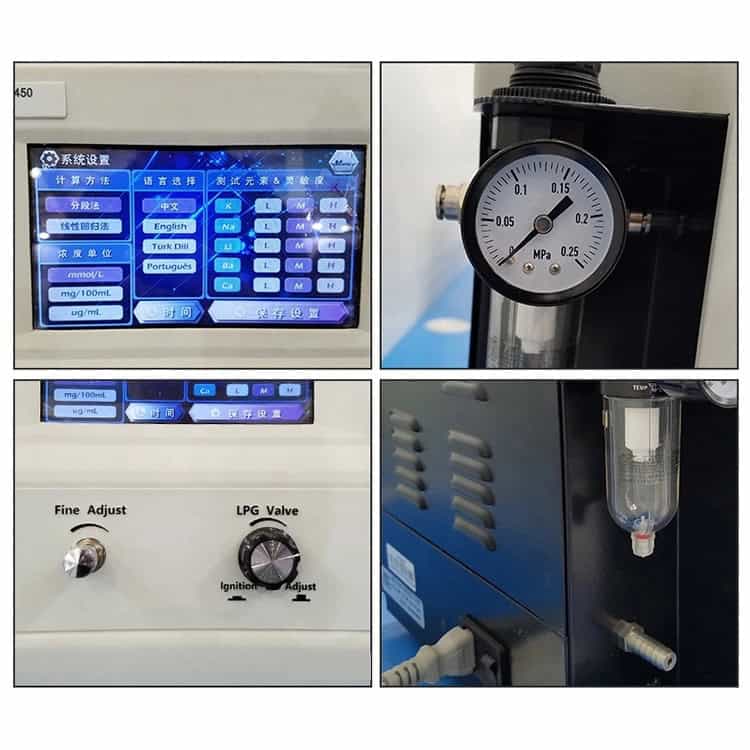

The host uses a 7-inch color capacitive touch LCD screen, It can store up to 200 sets of test data of the standard curve with a set of 10 points. The FP series flame photometer uses liquefied gas as fuel gas.
Main Features
- 7- inch color touch- screen
- Direct concentration display （Don’t cover FP640)
- Automatic calculation of correlation coefficient （Don’t cover FP640)
- Pre-selection of flame sizes
- Flameout protection device
- Measuring range changing
- Concentration units selectable
- Multilingual user interface
- Air compressor provide
Spec:
| Model | FP6450 | FP6440 | FP6431 | FP6430 | FP6410 | FP640 | |
| Operation mode | 7- inch color touch- screen | ||||||
| Display value | Concentration value | Optical power | |||||
| Data range | 0.000～999.9 | 000.0～999.9 | 0000～9999 | ||||
| Channel Qty | 5 | 4 | 3 | 3 | 2 | 2 | |
| Testable | K, Na, Li,Ca, Ba | K, Na, Li, Ca | K, Na, Ca | K, Na, Li | K, Na | K, Na | |
| Range ppm | K | 0-100 | |||||
| Na | 0-160 | ||||||
| Li | 0-100 | ○ | 0-100 | ○ | ○ | ||
| Ca | 0-1000 | 0-1000 | ○ | ○ | ○ | ||
| Ba | 0-3000 | ○ | ○ | ○ | ○ | ○ | |
| LOD ppm | K | 0.01 | |||||
| Na | 0.01 | ||||||
| Li | 0.1 | ○ | 0.1 | ○ | ○ | ||
| Ca | 2 | 2 | ○ | ○ | ○ | ||
| Ba | ○ | ○ | ○ | ○ | ○ | ○ | |
| Linear error | K | 0.195 | |||||
| Na | 0.69 | ||||||
| Li | 0.15 | ○ | 0.15 | ○ | ○ | ||
| Ca | 3 | 3 | ○ | ○ | ○ | ||
| Ba | 9 | ○ | ○ | ○ | ○ | ○ | |
| Response Time | <8s | ||||||
| Sample uptake | <6ml/min | ||||||
| Stability | < 3% drift over15s when continuously aspirating. | ||||||
| Reproducibility | < 3% coefficient of variation for 7 consecutive samples | ||||||
| Curve Graph | Display | ○ | ○ | ||||
| Printer | Optional build-in thermal printer | ○ | |||||
| COM | USB | ○ | |||||
| Fuel | LPG | ||||||
| Power | AC220V±22V 50Hz±1Hz,250W | ||||||
| Packing size | 570mmX530mmX400mm 0.12M3 18kg | ||||||
Detection Limits
| Element | mmol/l | ppm (µg/ml) |
| Potassium (K) | ≤ 0.004 | ≤ 0.156 |
| Sodium (Na) | ≤ 0.008 | ≤ 0.184 |
| Lithium (Li) | ≤ 0.015 | ≤ 0.104 |
| Calcium (Ca) | ≤ 0.050 | ≤ 2.00 |
| Barium (Ba) | ≤ 0.044 | ≤ 6.03 |
Linear Error
| Element | mmol/l |
| Potassium (K) | 0.005 |
| Sodium (Na) | 0.03 |
| Lithium (Li) | 0.021 |
| Calcium (Ca) | 0.075 |
| Barium (Ba) | 0.066 |
General Specification
| Reproducibility | ≤ 2% |
| Stability | < 3% |
| Response Time | < 8 seconds |
| Sample Uptake Volume | < 6 ml/minute |
| Printer | Integral Thermal Printer |
| Integral Thermal Printer | |
| USB Data Output | Optional FPWin Data Collection Software |
| Display | 7 inch Color LCD touch screen |
| Languages | English, Turkish, Portuguese, Polish, Russian |
| Concentration units | ug/ml, mg/100ml, mmol/l, meq/l |
| Gases | LPG, natural gas, propane butane |
| Dimensions | 400 x 250 x 500 mm |
| Weight | 8kgs |
Specification for Air Compressor
| Type | Single Cylinder Piston Compressor with air tank – OIL FREE |
| Power | 1/6 HP |
| Speed | 1450-1700 rpm |
| Air Output | 20-23 l/min |
| Adjustable Pressure Range | 0 – 6 Bar |
| Air Tank | 3 litres |
Analytical Measuring Range
High Range 0~ 5ppm
Medium Range 0~ 30ppm
Low Range 0~ 150ppm
