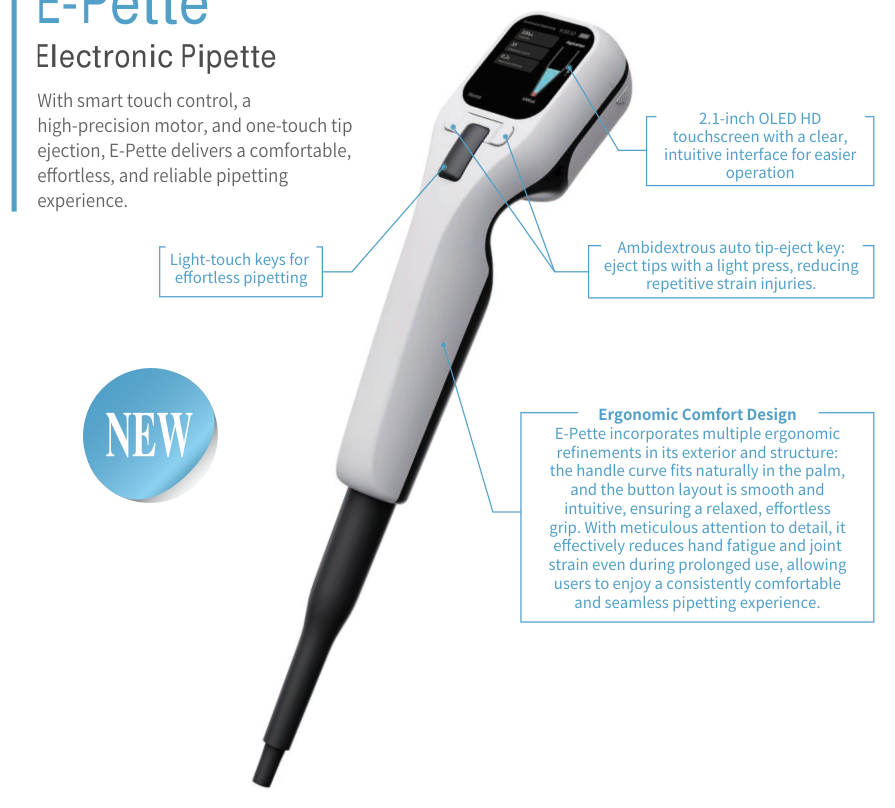

E-Pette Electronic Pipette
With smart touch control, a high-precision motor, and one-touch tip ejection, E-Pette delivers a comfortable, effortless, and reliable electronic pipetting experience across single-channel and multi-volume applications.
2.1-inch OLED HD Touchscreen | One-Touch Tip Ejection | High-Precision Stepper Motor | Smart Calibration Reminders
Key Features
- 2.1-Inch OLED Touchscreen: High-definition display with intuitive app-like interface provides fast parameter adjustments and clear monitoring.
- Ambidextrous Auto Tip Ejection: Eject tips with a light press, reducing repetitive strain injuries (RSI) and thumb fatigue.
- High-Precision Motor Drive: Eliminates human pipetting error, delivering superior accuracy and reproducibility across all volumes.
- Comprehensive Pipetting Modes: Supports standard pipetting, dispensing, auto-dispensing, manual pipetting, pipetting + mixing, multi-dispensing, custom programs, dilution, and titration.
- Ergonomic Comfort Contour: Contoured handle fits comfortably in the palm with optimized center-of-gravity for strain-free daily operation.
- Worry-Free Calibration: Integrated calibration reminders and guided adjustment software ensure long-term ISO compliance.
- Smart Data Management: Full operational data logging and traceability for regulated GLP/GMP laboratory environments.
Technical Specifications
| Volume Range | Increment | Test Volume | Systematic Error (μL) | Systematic Error (%) | Random Error (μL) | Random Error (%) |
|---|---|---|---|---|---|---|
| 0.5 – 10 μL | 0.01 μL | 10 μL | ±0.1 μL | ±1.0% | ±0.04 μL | ±0.4% |
| 5 μL | ±0.075 μL | ±1.5% | ±0.04 μL | ±0.8% | ||
| 1 μL | ±0.025 μL | ±2.5% | ±0.018 μL | ±1.8% | ||
| 1 – 20 μL | 0.02 μL | 20 μL | ±0.2 μL | ±1.0% | ±0.06 μL | ±0.3% |
| 10 μL | ±0.12 μL | ±1.2% | ±0.06 μL | ±0.6% | ||
| 2 μL | ±0.1 μL | ±5.0% | ±0.03 μL | ±1.5% | ||
| 5 – 100 μL | 0.1 μL | 100 μL | ±0.8 μL | ±0.8% | ±0.2 μL | ±0.2% |
| 50 μL | ±0.5 μL | ±1.0% | ±0.15 μL | ±0.3% | ||
| 10 μL | ±0.2 μL | ±2.0% | ±0.1 μL | ±1.0% | ||
| 10 – 200 μL | 0.2 μL | 200 μL | ±1.2 μL | ±0.6% | ±0.4 μL | ±0.2% |
| 100 μL | ±1.0 μL | ±1.0% | ±0.3 μL | ±0.3% | ||
| 20 μL | ±0.5 μL | ±2.5% | ±0.14 μL | ±0.7% | ||
| 15 – 300 μL | 0.2 μL | 300 μL | ±1.8 μL | ±0.6% | ±0.6 μL | ±0.2% |
| 150 μL | ±1.5 μL | ±1.0% | ±0.45 μL | ±0.3% | ||
| 30 μL | ±0.75 μL | ±2.5% | ±0.21 μL | ±0.7% | ||
| 50 – 1,000 μL | 1 μL | 1,000 μL | ±6 μL | ±0.6% | ±2 μL | ±0.2% |
| 500 μL | ±5 μL | ±1.0% | ±1 μL | ±0.2% | ||
| 100 μL | ±3 μL | ±3.0% | ±0.6 μL | ±0.6% | ||
| 200 – 5,000 μL | 5 μL | 5,000 μL | ±30 μL | ±0.6% | ±7.5 μL | ±0.15% |
| 2,500 μL | ±30 μL | ±1.2% | ±7.5 μL | ±0.3% | ||
| 500 μL | ±15 μL | ±3.0% | ±3 μL | ±0.6% | ||
| 500 – 10,000 μL | 10 μL | 10,000 μL | ±60 μL | ±0.6% | ±15 μL | ±0.15% |
| 5,000 μL | ±40 μL | ±0.8% | ±10 μL | ±0.2% | ||
| 1,000 μL | ±30 μL | ±3.0% | ±6 μL | ±0.6% | ||
| 1,000 – 20,000 μL | 10 μL | 20,000 μL | ±60 μL | ±0.6% | ±15 μL | ±0.15% |
| 10,000 μL | ±40 μL | ±0.8% | ±10 μL | ±0.2% | ||
| 2,000 μL | ±30 μL | ±3.0% | ±6 μL | ±0.6% |
Note: Calibrated and verified under strict laboratory conditions in full compliance with ISO 8655-2.
