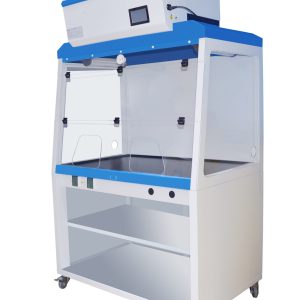

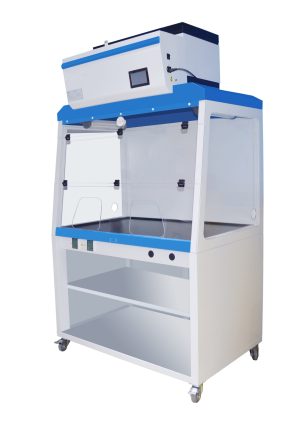

FH1000(C) Series Ductless Fume Hood

ADVANTAGE

1.LCD Touch screen control panel, easy to operate.

2. With memory function in case of power-failure.

3. 8ºslope front ergonomics design, fatigue-free working posture.

4. Temperature and humidity sensors, can detect indoor temperature and humidity.

5. Three side transparent Acrylic windows, front window reversal design,easy to operate.

6. Double-layers structure: 1mm sheet metal surface; Chemical resistant phenolic resin work table.

7. Electronic control system, anti-overload, anti-electric shock, stable performance, long service life.

8. Inside and outside probe, detect indoor air pollution and filter conditions. Audible and visual alarm for changing filter.



TECHNICAL PARAMETERS

Model+E18E22A1:E1A1:E18  FH1000(C) FH1200© FH1500(C) FH1800(C)
External Size (W*D*H)  1000*880*2140mm 1200*880*2140mm 1500*940*2140mm 1800*940*2140mm
Internal Size (W*D*H) 910*690*740mm 1110*690*740mm 1410*690*740mm 1710*690*740mm
Work Surface Height 900mm
Max Opening 650mm
Air Velocity 0.25∼0.35m/s
Airflow Volume 105 m3/h 325m3/h 415m3/h
Noise ≤55dB (A)
Fluorescent Lamp 16W*2 16W*3
UV Lamp Emission of 253.7 nanometers for most efficient decontamination
Blower Built-in centrifugal blower,speed adjustable
Front Window Acrylic window; Manual reversal design
Power Supply AC220V±10%,50/60Hz; 110V±10%, 60Hz
Consumption 400W 500W
                          Exterior Cold-rolled steel with anti-bacteria powder coating
Material       Side Window Acrylic Window
                        Work Table Chemical resistant phenolic resin
Chemical Filter 2pcs 4pcs
Standard Accessory Fluorescent Lamp, Base cabinet Total load of 2 waterproof sockets: 500W
Optional Accessory Water tap, Gas tap, Water sink, UV Lamp, Electric height adjustable base stand, HEPA Filter
Gross Weight 290kg 310kg 380kg 410kg
Package Size (W*D*H) 1140*1040*2350mm 1350*1040*2350mm 1650*1110*2350mm 1950*1110*2350mm
SKU: FH100C Category: Tags: , ,
