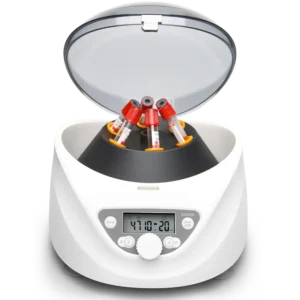

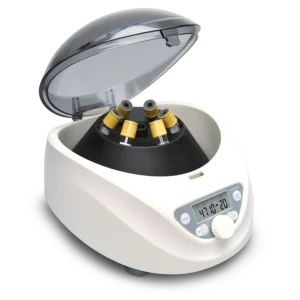

DM0506 Low-speed Centrifuge
Multipurpose Low-speed Clinical Centrifuge featuring speed range from 300 to 5000 rpm (2600×g max RCF), preloaded P1/P2 programs for one-key operation, automatic lid-lock release, maintenance-free brushless DC motor, and support for 6×15mL or 4×50mL rotor configurations.
300–5000 rpm Speed Range | 2600×g Max RCF | One-Key P1/P2 Program Start | Auto Lid-Lock Release | Brushless DC Motor
Applications
DM0506 is widely used in the medical industry. It is ideal for the separation of serum, plasma, urine, and fecal samples in biochemical and medical laboratories. It serves as essential equipment for clinical laboratories, blood banks, medical colleges, and medical research institutes.
Product Features
- Wide Speed Control Range: Speed range from 300 to 5000 rpm (10rpm increments) with setting and display switchable between RPM and G-force (RCF).
- Preloaded One-Key Programs: Features two pre-set routine programs (P1/P2) allowing quick one-key start for standard separation procedures.
- Dual Deceleration Profiles: Two deceleration speed settings (1↑ 2↓) to meet diverse sample separation protocols.
- Easy-to-Read LCD Display & Audio Alarm: Clear LCD screen provides real-time monitoring of speed, time, and program states, supported by a process completion sound alert.
- Automatic Lid-Lock Release: Electronic safety lid lock automatically releases the cover upon run completion for convenient sample retrieval.
- Maintenance-Free Motor: Reliable brushless DC motor ensures smooth acceleration, high speed accuracy (±20rpm), and long-term maintenance-free operation.
- Comprehensive Safety Protection: Integrated door interlock, overspeed detection, and automatic internal diagnostic systems.
Technical Specifications
| Specification Parameter | DM0506 |
|---|---|
| Speed Range | 300-5000rpm, increment: 10rpm |
| Max. RCF | 2600×g, increment: 10×g |
| Speed Accuracy | ±20rpm |
| Rotor Capacity | 6×1.5-5/7/10/15mL, 4×20/50mL |
| Run Time | 30sec-99min, HD (continuous running) |
| Display | LCD |
| Preloaded Program | P1 / P2 |
| Acceleration / Deceleration | 1↑ 2↓ |
| Safety Devices | Door interlock, Overspeed detector, Automatic internal diagnosis |
| Motor Type | Brushless DC motor |
| Power Requirements | Single-phase, 100V-240V, 50Hz/60Hz, 70W |
| Dimensions [W×D×H] | 300 × 240 × 180mm |
| Weight | 5.2kg |
| Advanced Features | Speed/RCF switch; sound-alert function |
Available Rotors & Adapters
Rotor Options
| Rotor Model | Cat. No. | Max. Speed | Max. RCF | Rotor Capacity | Material |
|---|---|---|---|---|---|
| A6-15P | 19400295 | 5000rpm | 2600×g | 6×15mL | High strength plastic |
| A4-50P | 19400294 | 5000rpm | 2600×g | 4×50mL | High strength plastic |
Adapter Options
| Adapter Model | Cat. No. | Description & Tube Compatibility | Applied Rotor |
|---|---|---|---|
| A5P17 | 19500022 | 5mL adapter, adapted to 13×75mm blood collection tube | A6-15P |
| A2P17 | 19500023 | 1.5/2mL adapter, adapted to 11×43mm centrifuge tubes and cryogenic vials | A6-15P |
