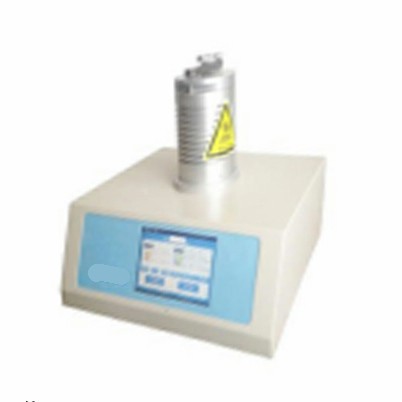

BKSC-1500B Differential Scanning Calorimeter

1.Wide screen touch structure of industrial level, rich display information, including the set temperature, sample temperature, oxygen flow rate,Nitrogen flow, differential thermal signals, all kinds of switch state, flow goes to zero.

2.USB communication interface, generality is strong, reliable communication don’t interrupt, support the restore connection function.

3.Furnace structure is compact, arbitrary adjus.

4.Software adaptive resolution of computer screens, each software automatically according to the computer screen size to adjust the curve display mode. Support for notebook, desktop; Support the Win2000, XP, VISTA, Windows 7 operating system, etc.

5.Support user programming procedures, to achieve fully automated measuring step. Software provides dozens of commands, users can according to your own measurement steps, and combined the orders, and save. Complex operation is simplified into a key operation,table cooling rate.

6.Improved installation process, all adopt the machinery fixed way, completely to avoid contamination of furnace inside colloid to differential thermal signal.

7.Digital gas mass flow meter atmosphere automatic switching two way traffic, fast switching and stable time is short. l Standard standard samples, convenient customer constant temperature correction coefficient.

emperature range room temperature ~1500℃
Temperature resolution 0.1℃
Heating rate 0.1~80℃/min
Temperature control mode rise in temperature ; constant temperature (Programs control automatically)
BKSC range 0~±200mW
BKSC resolution 0.01mW
BKSC sensitivity 0.1mW
Working power supply AC 220V 50Hz or custom-made
Atmosphere control of gas nitrogen ;oxygen (instrument changes automatically)
Gas flow 0-200mL/min
Gas pressure 0.2MPa
Accuracy of gas flow 0.2mL/min
Matching crucible Alumina crucible Φ6.7*3mm
Parameter standard equipped with standard material(indium ,tin, zinc) the user can correct the
temperature an d enthalpy
Data interface standard USB interface
Display mode 24bit color 7 inch LED touch screen display
Output mode computer and printer
