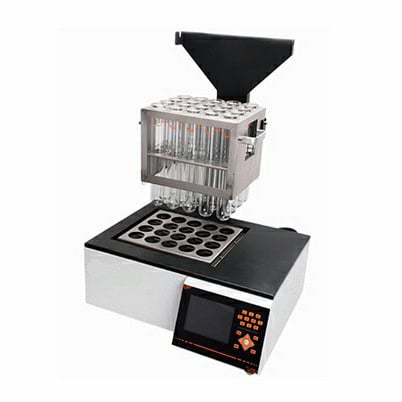

BGD-420 Graphite Digester

BGD-420 Graphite Digester adopts globally advanced high-temperature infrared radiation heating technology and microprocessor control platform, accurate temperature control and quick temperature rise. It has two kinds of temperature rise mode: linear and curve temperature rise mode, and offers 20 digestion programs for control of temperature rise curves.


* Anti-corrosion design: TEFLON coating on the surface, acid/alkali proof.
* Heating uniform and fast: Adopt graphite block(antioxidant), heating faster and energy transfer faster, temperature between holes more uniform.
* Safety protection: adopt unique air duct insulation tech, keep the temperature ultralow, protect operator

Model BGD-420F
Temperature Range RT +5~450℃
Temperature Accuracy ±1℃(450℃)
Heating Method Infrared heating and high-purity graphite conduction
Digestion Tube Capacity 300ml
Capacity Per Batch 20pcs/batch
Power Supply AC220±10%, 50Hz
Power Consumption 3600W
External Size(W*D*H) 474*509*636mm
Package Size(W*D*H) 540*570*830mm
Gross Weight 44Kg
