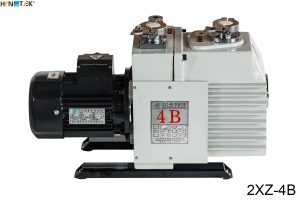

2XZ-4B Oil Pump

2XZ Series pump is two-stage oil sealed rotary vane vacuum pump and is a new concept out of routine of conventional design to satisfy customers needs for achieving high vacuum, great throughput, easy installation, operation and maintenance.
It is designed for all the high to low vacuum application such as for laboratory, Semiconductor industry, analytical instruments, light bulbs, fluorescent lights, distillation, freeze drying and all the other vacuum application works.

Spec:

Model Ultimate Pressure(Pa) Pumping Speed(L/S) Rotary Speed (RPS) Intel Diam (mm) Motor Power (kw) Weight(kg) Dimensions (mm)
2XZ-4B 6×10-2 4 1440 Φ25 0.55 30 512×196×332

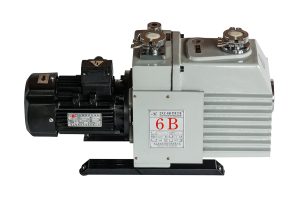

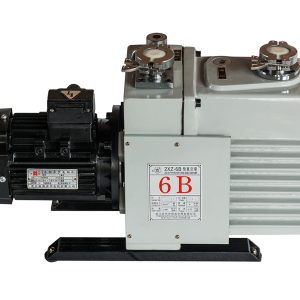

2XZ-6B 6×10-2 6 1440 Φ25 0.75 40 542×196×332

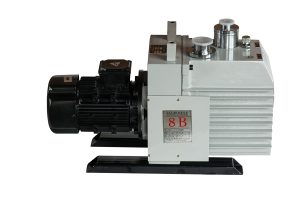

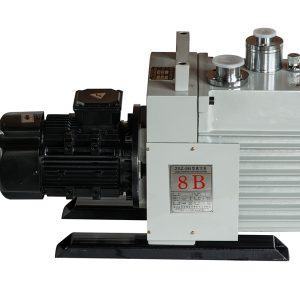

2XZ-8B 6×10-2 8 1440 Φ40 1.1 70 646×236×390

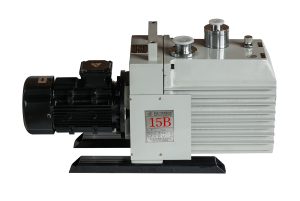

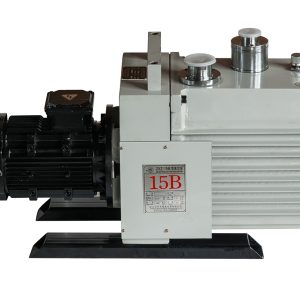

2XZ-15B 6×10-2 15 1440 Φ40 1.5 80 706×236×390

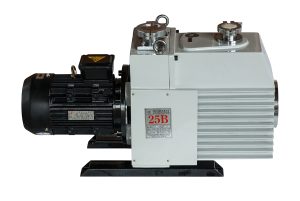

2XZ-25B 6×10-2 25 1440 Φ50 3 94 786×276×470
