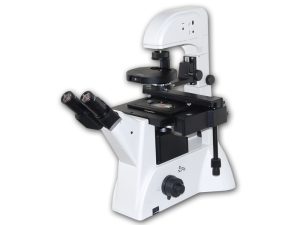

XDS-3PMC Inverted Biological Microscope

Description










Specification
  • Main parameters
    Total magnification
    100X~400X
    Mechanical tube length
    Conjugate distance of objective
    Eyepiece
    Wide-field plan eyepiece
    WF 10X
    field of view number Ф22mm
    Eyepiece interface
    Ф30mm
    Parfocal distance
    10mm
    Trinocular
    Hinged binocular tube, with an observation angle of 45°, and a pupil distance of 53-75mm
    modulation contrast objective
    Magnification
    Numerical aperture
    Working distance (mm)
    Thickness of cover glass (mm)
    Note
    10X
    0.25
    4.3
    1.2
    For modulation contrast view, The modulator of objective should be adapted with slot in the condenser
    20X
    0.40
    8.0
    1.2
    40X
    0.60
    3.5
    1.2
    Bright field objective
    10X
    0.25
    4.3
    1.2
    For bright field view
    20X(option)
    0.40
    8.0
    1.2
    40X(option)
    0.60
    3.5
    1.2
    Phase-contrast objective
    10X(option)
    0.25
    4.3
    1.2
    For phase contrast view, the objective phase shutter should be adapted with the cirque shutter in theconnser
    20X(option)
    0.40
    8.0
    1.2
    40X(option)
    0.60
    3.5
    1.2
    Nosepiece
    Quintuple
    Condenser
    Working distance 55mm, adapted for turntable type modulation contrast view
    Working distance 55mm, adapted for puller type modulation contrast view(option)
    Working distance 55mm, with phase-contrast device (option)
    Working distance 55mm with aperture diaphragm,adapted for bright field view(option)
    Stage
    Mechanical Stage, moving range 77mm (longitudinal)X134.5mm (transverse), detachable stage moving device
    Focus system
    Coaxial carse/fine focus with tension adjustable and up stop ,minum division of fine focusing is 2 um
    Culture dish holder
    Holder 1
    86mm (W)X129.5mm (L), optional with a circular culture dish Ф87.5mm
    Holder 2
    34mm (W)X77.5mm (L), optional with a circular culture dish Ф68.5mm
    Holder 3
    57mm (W)X82mm (L)
    Light source
    6V/30W halogen lamp, adjustable in brightness
