Use
The table type sterilizers are safely auto-controlled, which are designed for the dental clinics, hospitals, school lab, scientific research institutions and laboratory. And mostly suitable for sterilizing of surgical, dental and eye instruments, glassware medicine, culturemedium and biological dressing, food, etc.
Characteristics
- For 4-6 minutes rapidly sterilizing.
- Digital display of working status, touch type key.
- With 3 fixed cycles of sterilizing program and adjustable for user.
- The whole process of water adding, temperaturerising, sterilizing, drying steam discharging controlled automatically.
- Steam-water inner circulation system: no steam discharge, and the environment for sterilizing will be clean and dry.
- Safe protection of water lacking.
- Exhaust the cool air automatically.
- Door safety lock system.

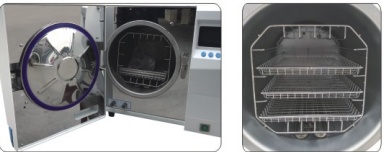

- With four stainless steel sterilizing plates.
- The chamber of the sterilizer is made of stainless steel.
- Automatically shut off with beep reminding after sterilization.
- With drying function.
Technical Data
| Model | TM-XD20D | TM-XD24D |
| Sterilizing chamber volume | 20L | 24L |
| Φ250 x 420mm | Φ250 x 520mm | |
| Working pressure | 0.22Mpa | |
| Working temperature | 134ºC | |
| Temperature adjust range | 105∼134ºC | |
| Timer range | 0∼99min | |
| Heat Average | ≤±1ºC | |
| Power | 1.5KW / AC220V.50Hz | |
| Sterilizing plata | 340*200*30 (3piece) | 400*200*30 (3piece) |
| Dimension | 480*480*380 | 580*480*384 |
| Exterior package dimension | 700*580*500 | 800*580*500 |
| G.W/N.W | 43 / 40kg | 50 / 45kg |
